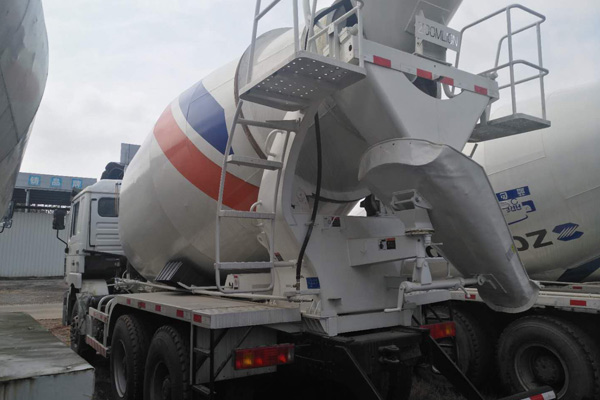

Zoomlion Concrete Mixer Truck-S.N.H180213

Quantité : 1   Prix : USD44,000 to USD17,0

Product Description of used cement concrete mixer truck-S.N.H180213:

1. Zoomlion large 10 cbm used cement mixer truck.

2. Shanxi Automobile Delong chassis F3000.

3. Three axles, weichai power, WD615/WD618 series engines were introduced from Austria Steyr company with mature technology.

4. 336 horsepower.

5. Manufacture Date is Feb. of the year 2011.

6. Remanufactured equipment in the best condition.

7. Import quality, trustworthy. No formalities and higher cost performance.

Technical Parameter of used cement trucks-S.N.H180213:

Condition

Remanufactured

Upper structure brand

Zoomlion

Chassis Brand

Shanxi Automobile Delong

Chassis Model No.

ZLJ5253GJB1

Manufacture Year and Month

Feb.of 2011

Dimensions(LxWxH)

8850mmx2496mmx3850mm

Empty Truck Total Mass

13370kg

Driving form

6x4

Model No.

WD615.95E

Rated Power(kW/r/min)

247/2200

High Torque (N · m / r / min)

1350/1200~1500

Emission standard

Euro 3

Geometric volume (m³)

11

nominal volume (m³)

53

Output speed (m³/min)

≥2

input speed (m³/min)

≥3

Rest rate (%)

<1</span>

Pump

International famous brand

Reducer

International famous brand

Motor

PMP

Cooler

ZF

Hydraulic circuit

Closed

Water tank volume(L)

400

Water mode

Vapour-pressure type

Notes for the operation of zoomlion mixer truck:

1. It is necessary to stop the inspection before the operation of the used concrete mixer trucks, and confirm that the steering, braking, lighting and signal system is sensitive and effective. Ensure that the roller and chute of the truck are free of cracks and serious damage, the stirring blade is worn within the normal range, and the u-bolt between the chassis and the auxiliary frame is well connected.

2. Understand the construction request and site situation. Choose roads and parking areas.

3. Traffic regulations must be observed when driving on roads. The turning radius should comply with the request of operating instructions. The speed should not be greater than 15km per hour. The speed is no more than 5km per hour when entering the station.

4. When working, it is strictly forbidden to touch the rotating roller and roller by hand.

5. When the used concrete mixer lorry is backing up and unloading, the operators must obey the command, pay attention to the surrounding personnel, and immediately stop the truck if any abnormality is found.

6. It is forbidden to stop the cleaning of the used mixer trucks under the high-pressure line.
