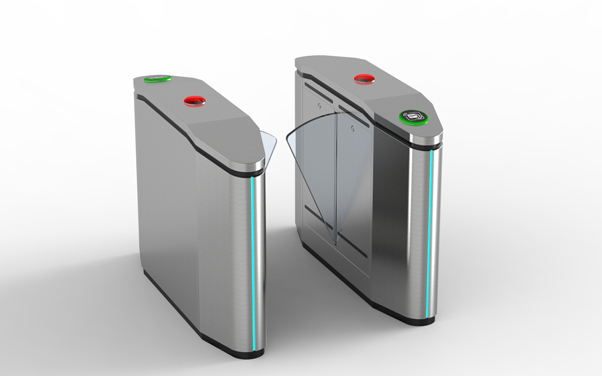

ZOJE Flap Barrier Turnstile Gates Model No. ZOJE-Y109

People usually think that the flap barrier mechanism is more flexible than other turnstile gates, and actually, that is also the truth.
Flap barriers are widely used in metro stations with huge pairs of infrared sensors added. While for ordinary access control use, 6 or 8 pairs are enough.
Besides, you can find these flap barriers in zoos, scenic spots, gyms as well as other indoor or outdoor applications. They are really popular and doing a lot for public security.
ZOJE-Y109 is one of our new released flap barriers, with its conventional but unique design, serving clients from a number of different Asian and African countries.
For ordinary project purchase, standard 304 stainless steel are qualified, while we do have a few customers who customize 316 instead to prevent the daily corrosion as the turnstile gates are applied to applications near the sea.
ZOJE is always proud to talk about its self-designed mechanical structure which perfectly works together with the powerful motors as they never let customers down, doing their duties properly for long-term and stable security obligations.
Standard wings are made from acrylic for the sake of safety, but tempered glass can be optional for stronger construction.
Specification:
Standard model ZOJE-Y109
Turnstile type Flap barriers / flap turnstiles
Cabinet material 304 stainless steel (standard)
316 stainless steel (optional)
Door material Acrylic (standard)
Tempered glass (optional)
Finish Stainless steel satin finish
Dimension 1400*300*1000mm (L*W*H)
Passage width Max 600mm
Direction Single / bidirectional
Function Fail safe, anti-clamping
Power supply AC110–220 V, 50/60Hz
Unlock time Adjustable
Working environment Indoor and outdoor
Motor DC brush motor (standard)
DC brushless motor （optional)
DC servo motor （optional)
