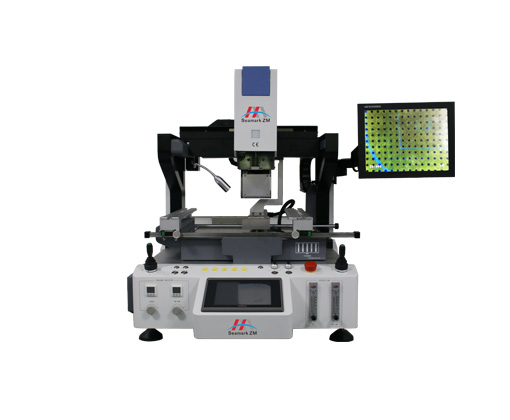

ZM-R7830A Smart Optical BGA Rework Station
Quantité : 200 units, Prix : $60~$20,000
R7830A is an optical alignment automatic rework equipment. It also works as laser BGA SMD rework station, multi-language menu interface, automatic feeding device, X/Y AXI machine that can be controlled by joystick, fast and convenient operation, imported high-definition CCD (2 million pixels) optical alignment system, high Precision temperature control sensor system, precise temperature control.
As one of the most reliable laser bga rework station manufacturers, Seamark ZM provides the best BGA rework station for motherboards with good quality.
Functions of R7830A Laser SMD Rework Station
01 X/Y/Z Axis Automatic Displacement
The top temperature zone of the Laser SMD Rework Station is controlled by the joystick control servo system, which can automatically move and align at fast/slow speed by X/Y/Z Axis.
02 Vacuum Adsorption and Nitrogen Protection
The top heating head has a built-in vacuum suction nozzle for chip adsorption, electrically controlled 360-degree rotation alignment, with negative pressure monitoring and pressure protection device. The bottom temperature zone of the Laser SMD Rework Station adopts a large-area heating wire layout, moves symmetrically with the top temperature zone, and can be connected with nitrogen to prevent PCBA from yellowing.
Features of R7830A Laser SMD Rework Station
Multilingual menu interface
Automatic feeding device
X/Y axis can be controlled by joystick, operation is quick and convenient
Imported high-definition CCD (2m pixels) optical alignment system.
High-precision temperature control sensing system.
As one of the top BGA Rework Station suppliers in China, Seamark ZM is famous for its rich technical force, complete detection means, reliable product quality, full service. If you want to know some different types of BGA repair machines and to get a perfect kind of repair machine for your factory, please contact Seamark ZM first.
Specification Of ZM R7830A Laser SMD Rework Station
|
Power Supply |
AC380V±10% 50/60HZ |
|
Power |
7.15KW(Max), Top heater(1.45KW) Bottom heater (1.2KW), IR Preheater (4KW), Other(0.5KW) |
|
PCB Size |
565*467mm(Max); 6*6mm(Min) |
|
BGA Chip Size |
80*80mm(Max); 2*2mm(Min) |
|
IR Heater Size |
500*380mm |
|
Motion Control |
X/Y/Z |
|
Temperature Sensor |
5 Pcs |
|
Operation Method |
8" HD touch panel |
|
Control System |
Panasonic PLC + Temperature control module |
|
Display System |
15" HD industrial display ( 1080P 16: 9) |
|
Alignment System |
2 Million Pixel HD digital imaging system, automatic optical zoom with laser red-dot indicator |
|
Vacuum Adsorption |
Automatic |
|
Alignment Accuracy |
±0.01mm |
|
Temperature Control |
K-type thermocouple closed-loop control with accuracy up to ±1℃ |
|
Feeding Device |
Yes |
|
Positioning |
V-groove with universal fixture |
|
Dimensions |
L810*W1100*H960mm |
|
Weight |
151KG |
Now the price of x ray inspection machine for sale is reasonable, if you have needs, please contact us.
