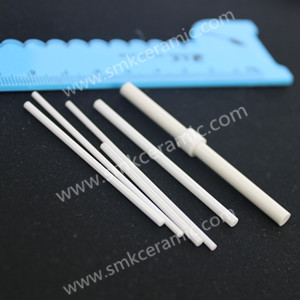

Zirconium Oxide ceramic shaft

Quantité : 30000   Prix : USD1-200

Seamark specialize in researching, developing and providing customized fine ceramic solution, our main material including 96% alumina ceramics (Al2O3),99% alumina ceramics,Zirconia ceramics(ZrO2),Silicon carbide(SiC),Silicon Nitride (Si3N4). Whether you are a tooling manufacture or end user, our specialists are available to provide full engineering and technical support throughout the concept, design, and production stages to ensure maximum performance of our material is obtained.

● high mechanical strength

● high temperature, Max working temperature: 1700C.

● good electrical insulation

● Good chemical corrosion resistance under high temperature.

● Excellent wear and abrasion resistance

● Very hardness and Excellent thermal shock

Zirconia (ZrO2) is an extremely refractory material. Its strong resistance to the high temperature and high pressure, lower ratio of the moisture absorption, stable chemical properties, and its capacity of enduring the corrosion of acid, alkali, and organic solvent make it widely utilized in Petroleum exploration, Mechanical industry, chemical industry, natural gas, Medical equipment and environmental protection fields etc. Compared with alumina, it possesses excellent chemical inertness and corrosion resistance at temperatures well above the melting point of alumina.

Property of Zirconia.

Density

g/cm3

6

Thermal performance

Thermal expansion

X10-6/K

10

sintering temperature

1600

heat resistance impact force

T(℃)

360

Weibull Modulus

m

23

Thermal Conductivity

W/mk

<2</p>

Vickers Hardness

HV0.5

1300

Thermal shock resistance

ΔT°C

270

Flexural Strength

Mpa

1000

Highest Application Temperature

°C

1000

Compressive Strength

Mpa

3000

electrical characteristics

Volume Resistivity at 20℃

Ωcm

>10^12

fracture toughness

Map.m3/2

6-8

Dielectric breakdown strength

KV/mm

-

Modulus of Elasticity

GPa

200

Dielectric constant

100MHz(E)

-

Impact Resistance

MPa.m1/2

8

1 MHZ dielectric loss Angle at 20℃

tanδ

-

Choose Seamark Ceramic, we are now able to offer following services:

1. Before sales service: we will reply all your questions or inquiry in time, if you need some suggestion on your project, it will be our pleasure to do it.

2. In contract: our strict quality control is performed in every step of producing; we pay attention on every detail to ensure you are satisfied with our products and service.

3. After sales service: any questions, please let us know by email or phone, we will help you to deal with those problems

We can supply the products according to customer's drawings, samples and performance requirement. If you need any further information, please do not hesitate to contact us .or you can visit our website.

Suzhou Seamark Fine Ceramics Co., Ltd

Mr.Beck Jin

Email: info@smkceramic.com

Tel: +86 512 66255075

Fax: +86 512 66255030

Mob: +86 18550512237

Localisation : NO.612 Xujiang Industrial Area Sunwu Road,Wuzhong District,Suzhou City, China, 215164 suzhou,
Personne à contacter : Beck Jin, 86 512 66255075
