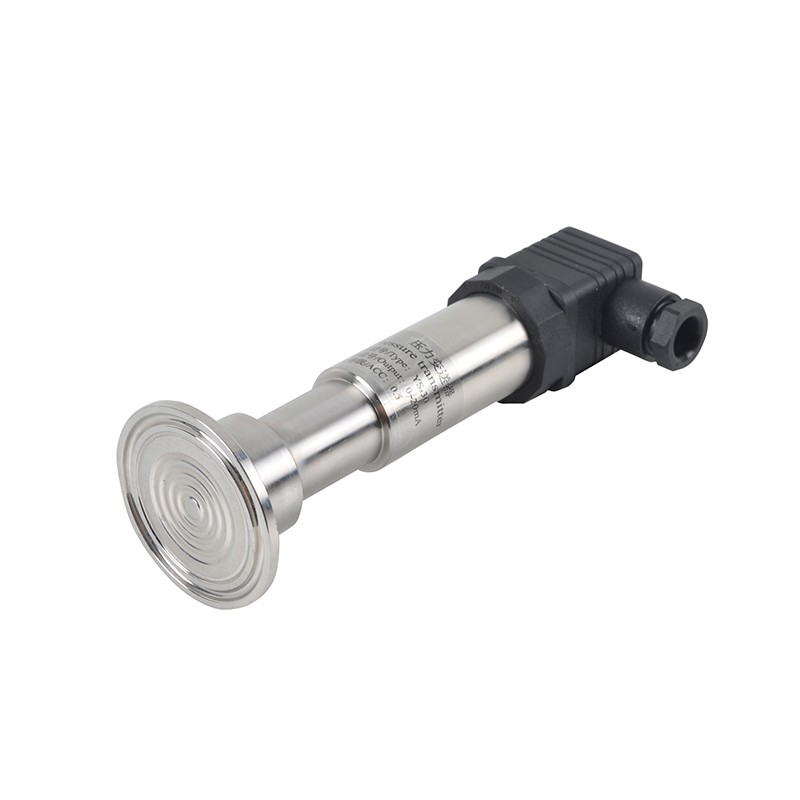

YS-30+DS Silicon Piezoresistive Diaphragm Pressure Transmitter

Our current pressure measuring equipment line features Gas Density Monitor Series, Pressure Gauges and Meters, Differential Gauges, Diaphragms and Valves, Online Monitoring Systems, Filling Fluids and Accessories. Primary clients industries include electrical power systems, biotechnology & pharmaceuticals, food & beverages, oil & gas and petrochemical industries.

For Measuring Pressure in fluids that are highly viscous, crystalizing, solidifying or contains small grains, to prevent crystallization or clogging in the vent. Various Signals for Different Industrial Standards

Drawing of YS-30+DS Silicon Piezoresistive Diaphragm Pressure Transmitter

DN

M/mm

b/mm

1”

50.5

35

1.5”

50.5

35

2”

64

42

DN/mm

M/mm

d/mm

e/mm

b/mm

25

63

Rd52×1/6

21

35

32

70

Rd58×1/6

21

38

40

78

Rd65×1/6

21

42

50

92

Rd78×1/6

22

54

Application of YS-30+DS Silicon Piezoresistive Diaphragm Pressure Transmitter

  1. Oil and Gas
  2. Petrochemical Industry
  3. Electrical Equipment
  4. Mechanical Processing
  5. Food and Beverage
  6. Biopharmaceutical Industry

Feature of YS-30+DS Silicon Piezoresistive Diaphragm Pressure Transmitter

  1. Small size
  2. High accuracy
  3. Standard signal output
  4. IP65
  5. DIN32676 or DIN11851 standard flange connection
  6. Medical grade
  7. 316L isolation transmitter diaphragm
  8. No dead angle in the measuring cavity
  9. Easy to clean

Technical Data of YS-30+DS Silicon Piezoresistive Diaphragm Pressure Transmitter

Certification:

CPA (China), CRN (Canada)

Accuracy:

0.5%

Overpressure:

150% x Full Scale Range

Wetted Material:

316L Stainless Steel

Case Material:

Stainless Steel

Power Source:

11-30V

Signal Output:

4-20mA

Power Load:

≤600Ω

Response Time:

<1ms</span>

Process Connection:

Flange in compliance with DIN 32676 or DIN 11851

Electrical Connection:

Angular Connector Form A EN175301-803, PG9 or PG11

Diaphragm Filling:

Silicone, NEOBEE-M20

Working Temperature:

-20℃ to 60℃

NEOBEE-M20 -20℃ to +40℃

Standard Measuring Range

MPa

0~0.6

0~1

0~1.6

0~2.5

bar

0~6

0~10

0~16

0~25

psi

0~100

0~160

0~200

0~300

* Range could also be converted to units including millibar (mbar), kg/cm2 and kPa.

Options of YS-30+DS Silicon Piezoresistive Diaphragm Transmitter

  1. Process Connection Dimensions Customizable

As one of the most professional diaphragm seal pressure transmitter manufacturers from China, LANSO has top quality diaphragm pressure transmitter for sale. If you want to know our diaphragm seal type pressure transmitter or other products, such as diaphragm pressure transducer and diaphragm pressure sensor, please contact us or leave a message through our website.
