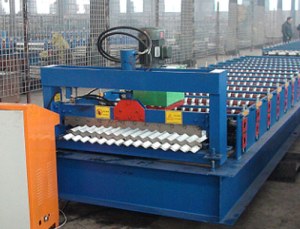

XN15-55-825 roof panel forming machine

Hebei Xinnuo 15-55-825 roof panel forming machine, the feeding width is 1000mm, the production can be used for the roof and wall. Color steel sheet forming machine, characteristics and Uses: Xinnuo color steel tile roll forming equipment, both the solemn elegant, new and beautiful, and smo oth appearance, uniform corrugated, utilization rate is high, the strength is strong, the production high degree of automation, low cost, very durable.
XN15-55-825 roof panel forming machine
Configurations: 5t manual uncoiler, forming machine, cutter, hydraulic system, controller, output table
Control: full-auto PLC inverter encoder
Station: 9 stages
Main power: 3KW
Pump power: 3KW
Roller dia: Φ72mm
Line speed: 14m/min
Coil width: 1000mm
Cover width: 825mm
Coil thickness: 0.35-0.6mm
Blade STD: Cr12 hardening treatment
Roller STD: 45#steel hardening with Chrome coating
Overall size: 5000mm×1300mm×1450mm
Weight: about 2.5tons
