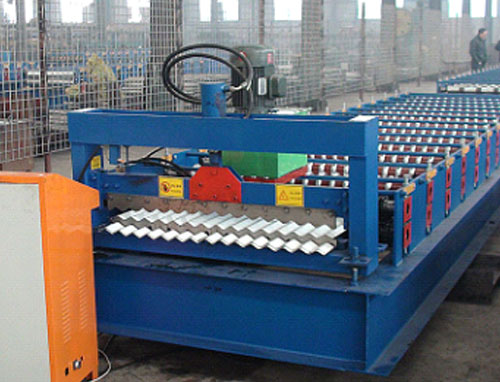

XN15-225-900 roof panel roll forming machine

Quantité : 1   Prix : 1,00 €

Hebei Xinnuo 15-225-900 roof panel forming machine, adopting roll forming method, can produce beautiful appearance, strong panels which are extensively used in roof construction or outd oor decoration. It is widely used in industrial and civil buildings, such as workshops, warehouses, engine library, hangar, gymnasium, exhibition hall, theater room surface and wall. XN15-225-900 a utomatic frequency control roll forming machine
Units including: manual decoiler ,main machine for roll forming, post cut, hydraulic system ,PLC control, stacking 1.control system : automatic PLC frequency control, text screen.
2.roller steps: 9rows
3.main power: 3kw
4.pump power: 3kw
5.Diameter of roller: Φ72mm
6.max speed: 12m/min
7.feeding width: 1000mm
8.the effective width: 900mm,tolerance ±1/100
9.thickness of the plate: 0.35-0.6mm
10.the dimension of main roll former: 5000mm×1300mm×1450mm
11.roller material: 45#steel,CNC-machined ,heat treatment,buffing,surface for electroplating chromium 0.05mm

http://www.xinnuochina.com/roof/3.html

Localisation : 104 National Road, Botou City, Hebei Province, China, 062150 cangzhou,
Personne à contacter : allen li, 86 317 8312992
