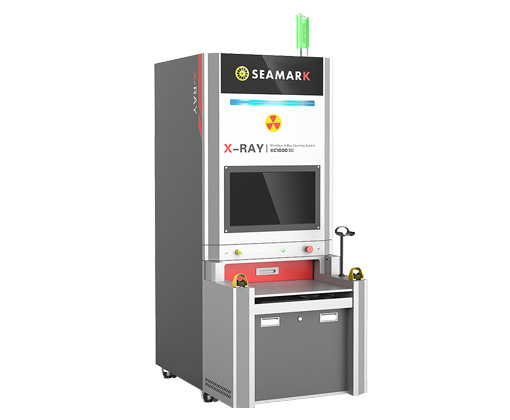

XC1000 Offline Reel Counter
Quantité : 500 Sets/M Prix : $1000-200000
XC1100 is a micro-focus X-ray full-automatic counting machine.
It uses X-Ray perspective principle and independently developed algorithm software with AI function, which can quickly and accurately calculate the number of materials in the material reel. This X-Ray chip counter also has MES Data upload and automatic printing of material labels. To achieve the function of improving work efficiency and saving manpower.
As a professional X-Ray reel counter supplier, Seamark trys our best to provide good products and service for you.
Product Features
Compared with traditional counting/pointing machine, there is no need to unpack or transfer the reel in the X-Ray reel counter.
Suitable for all types of chip components, SMD devices above 01005.
Accuracy of counting reaches more than 99.99%.
Measurable reel diameter is 7-15 inches.
Innovative detection environment and algorithm with AI function.
Realize automatic counting.
Specification Of XC1000 Offline Reel Counter
|
X-Ray Tube Source Specification |
|
|
Type |
Sealed Micro-Focus X-Ray Tube |
|
Voltage |
80 KV |
|
Operating Voltage Range |
30-80KV |
|
Operating Current Range |
200 -700μA |
|
Max Output Power |
56W |
|
Micro Focus Spot Size |
30μm-40μm |
|
Flat Panel Detector Specification |
|
|
Type |
TFT Industrial Dynamic FPD |
|
Pixel Matrix |
3072×3072 |
|
Field of View |
427mm×427mm |
|
Resolution |
3.6Lp/mm |
|
Frame（1×1) |
6fps |
|
A/D Conversion Bit |
16bits |
|
Dimensions |
L800mm×W1260mm×H1950mm |
|
Input Power |
220V 10A 50-60HZ |
|
Max Sample Size |
450mm×450mm |
|
Control System |
Industrial PC WIN7/ WIN10 64bits |
|
Net Weight |
Approx 800KG |
|
Radiation |
＜1μSv/h |
For more information about laser reballing machine and bga x ray inspection equipment, please feel free to contact us!
