XC-RF868 Fixed Reader
Prix : 0.1~1000usd

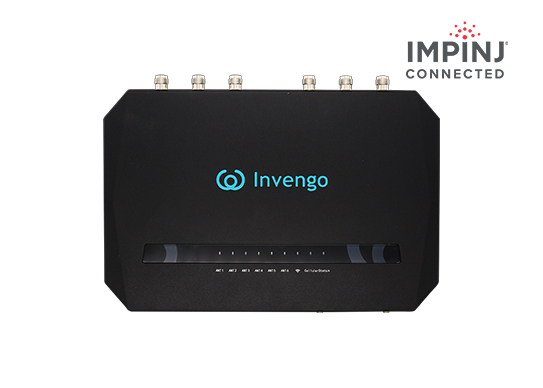

XC-RF868 Fixed Reader
Invengo's XC-RF868 loT Smart Reader adopts excellent architecture design and powerful reading and writing algorithm. It equips with Impinj R2000 chip and supports 6-channel RF ports. The reader is available to match various specifications of antennas and has excellent reading and writing performance.
Main Features of XC-RF868 Fixed RFID Reader
6 antenna ports
-85dBm receiving sensitivity
Edge computing with built-in operating system
High speed reading: up to 1000 labels in 5 seconds
Reader management web interface Support PoE+ supply
SPECIFICATIONS OF XC-RF868 FIXED READER
|
Hardware and Operating System |
Processor |
Quad-core Cortex-A53, 1.3GHz |
|
Memory |
3GB, 16GB FLASH |
|
|
Operating |
Linux/Android OS |
|
|
Chip |
Impinj R2000 |
|
|
RFID Parameters |
Agreement |
EPCglobal UHF Class1 Gen2 |
|
Transmit power |
11~33dBm (1dBm step), up to 30dB- |
|
|
m(Under PoE+ charging) |
||
|
Frequency range |
CN: 920.625MHz ~ 924.375MHz |
|
|
FCC: 902.75MHz ~ 927.25MHz |
||
|
EU: 865.7MHz ~ 867.5MHz |
||
|
Read rate |
Maximum 1000 times/second |
|
|
Multi-label reading |
Maximum 1000 sheets/5 seconds |
|
|
Reading distance |
0~30m |
|
|
Writing distance |
0~15m |
|
|
Maximum receiving |
-85dBm |
|
|
sensitivity |
|
|
|
Antenna Impedance |
50ohm |
|
|
Interface Parameters |
Ethernet: |
10/100/1000M Ethernet (RJ45) |
|
Antenna |
6 TNC interfaces |
|
|
USB |
2 USB3.0 TYPE-A, 1 USB3.0 TYPE-C |
|
|
HDMI |
Support |
|
|
GPIO |
4 isolated inputs and 4 isolated |
|
|
outputs |
||
|
Wi-Fi |
Support |
|
|
4G/5G (optional): |
Support |
|
|
Power supply mode |
DC24V power adapter/PoE+ |
|
|
Physical Parameters |
Dimension |
259.7mm × 170.8mm × 32mm |
|
Weight |
1.6 kg |
|
|
Shell material |
Die-cast aluminum alloy |
|
|
Protection level |
IP50 |
|
|
Environmental Parameters |
Operating temperature |
-25℃ ~ +70℃ |
|
Storage humidity |
-40℃ ~ +85℃ |
|
|
Working humidity |
5%RH ~ 95%RH (non-condensing) |
As one of rfid software companies, we can provide kinds of metal rfid tag for sale, if you are interested, please contact us.
