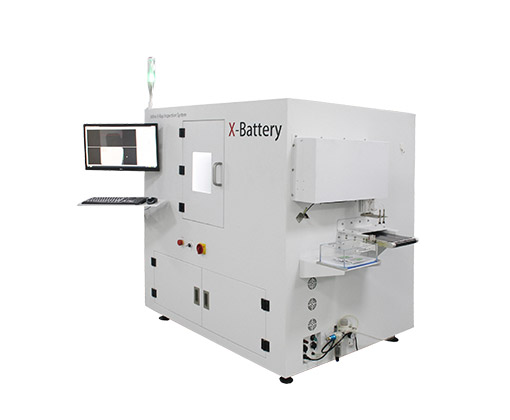

XB8200 X-Ray Lithium Battery Inspection Series

Quantité : $1000-2000   Prix : 500 Sets/Month

XB8200 is mainly used for automatic online detection of positive and negative alignment during the production of square polymer soft pack batteries. The battery X-Ray inspection system is based on the fully automatic optical detection developed on the basis of an image detection technology system. Obtain image information, automatically measure the alignment deviation between the positive and negative electrodes of the battery, automatically select bad products, and automate the entire testing process.

Features of XB8200 Battery X Ray Inspection Machine

  1. Automatic measurement of battery positive and negative alignment.
  2. Automatically discriminate good products and bad products, and sort bad products automatically.
  3. High detection efficiency, built-in two sets of manipulators alternate movement, to achieve high-speed online detection.
  4. The doors related to the product optics are equipped with an interlock function, and the industrial X-Ray machine cannot work without closing any door.
  5. The inlet and outlet can be connected to the production line.
  6. By storing bad battery picture information in real time, historical records can be traced.
  7. Save the inspection image and the original image at same time, and save the inspection data in a table for easy viewing and analysis.
  8. It is easy to change the product model, and the different models can be changed and debugged quickly, usually in 10-20 minutes.

As a professional x-ray inspection machine manufacturer in China, Seamark ZM is famous for its rich technical force, complete detection means, reliable quality, good service. If you want to know the exact industrial x-ray machine price and to get a perfect kind of repair machine for your factory, please contact Seamark ZM first.

Specification Of XB8200 Battery X-Ray Inspection Series

XB8200 battery x-ray inspection machine

X-Ray Tube Source Specification

Tube Type

Reflective Sealed Micro-Focus X-Ray Source

Voltage

90 KV

Operating Voltage Range

40-90KV

Operating Current Range

10-200 μA

Max Output Power

8 W

Micro Focus Spot Size

5-15μm

Flat Panel Detector Specification

Flat-panel Type

CMOS flat panel detector

Pixel Matrix

1172×1100

Field of View

58mm×54mm

Resolution

10.1Lp/mm

Frame1×1)

30fps

A/D Conversion Bit

14bits

Dimensions

L2390mm×W1250mm×H1700mm

Input Power

220V 10A 50-60HZ

Net Weight

Approx 1550KG

Radiation

1μSv/h

See also X5600/X6600/X7600/X1200/XB8100/XD160.

Seamark ZM is a professional x ray inspection machine manufacturer. We provide pcb x ray inspection machine, bga x ray machine and etc. Zhuomao has specialized in research, development, production, and sells superior quality BGA rework stations for more than 10 years.
