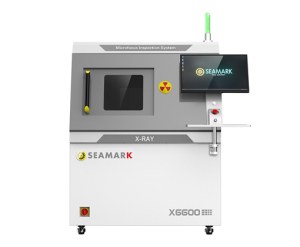

X6600 Offline X-Ray Inspection Machine
Quantité : 500 Sets/M Prix : $1000-200000
X6600 is a cost-effective general-purpose offline precision microfocus X-Ray inspection equipment. It is suitable for the inspection of various factory offline products. This AXI inspection machine has the characteristics of high magnification, multi-angle inspection, and a large-area inspection platform.
Features of X6600 Offline X-ray Inspection Machine
Meet the needs of the general industrial X-ray machine and have a wide range of applications.
A high-resolution design can obtain the best image in a very short time.
Infrared automatic navigation and positioning, quickly select the shooting location.
CNC detection mode, fast automatic detection for multi-point array.
Oblique multi-angle inspection makes it easier to detect sample defects.
Software operation developed by Seamark is simple and easy to use, low operating cost.
The X-ray tube and FDP can be rotated at the same time (0-60°), making the detection image more clear and intuitive.
As a professional x-ray inspection machine manufacturer in China, Seamark ZM is famous for its rich technical force, complete detection means, reliable quality, good service. If you want to know the exact industrial x-ray machine price and to get a perfect kind of repair machine for your factory, please contact Seamark ZM first.
Specification Of X6600 Offline X-Ray Inspection Machine
|
X-Ray Tube Source Specification |
|
|
Type |
Sealed Micro-Focus X-Ray Tube |
|
Voltage |
90 KV/130KV |
|
Operating Voltage Range |
40-90KV/130KV |
|
Operating Current Range |
10-200 μA/300μA |
|
Max Output Power |
8 W/39W |
|
Micro Focus Spot Size |
5-15μm |
|
Flat Panel Detector Specification |
|
|
Type |
TFT Industrial Dynamic FPD |
|
Pixel Matrix |
1536×1536 |
|
Field of View |
130mm×130mm |
|
Resolution |
5.8Lp/mm |
|
Frame（1×1) |
20fps |
|
A/D Conversion Bit |
16bits |
|
Dimensions |
L1360mm×W1240mm×H1700mm |
|
Input Power |
220V 10A/110V 15A 50-60HZ |
|
Max Sample Size |
540 mm×440mm |
|
Control System |
Industrial PC WIN7/ WIN10 64bits |
|
Net Weight |
Approx 1170KG |
|
Radiation |
＜1μSv/h |
|
Max Tilt Angle |
65 degree |
See also X5600/X7600/X1200/XB8100/XB8200/XD160.
If you are looking for a reliable infrared rework station factory, don't hesitate to contact us!
