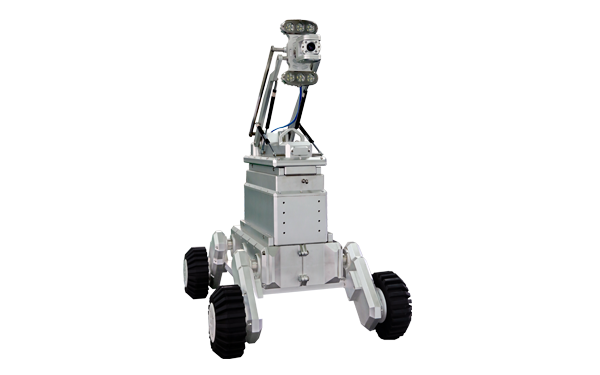

X5-HW Pipeline CCTV Inspection Robot
Quantité : 30set/Mont Prix : 1000USD-40000USD
X5-HW pipeline CCTV inspection robot adapts to the pipe diameter range of 800mm-4000mm, and the detection distance can reach 2000 meters. It is a product designed for large long-distance drainage pipelines. Its most notable feature is the long single detection distance, which solves the problem that traditional pipeline inspection robot cannot detect long-distance pipelines.
X5-HW Pipeline CCTV Inspection Robot Main Parts
Crawler
Suitable for pipe DN800-4000
IP68 up to 10m water depth
Powerful eight-wheel drive (steerable)
Automatic removable elevator
Include pressure sensor, inclination sensor, roll and pitch sensor
Integrated rear-view camera
Electrical adjustable clutch Power supply: cable reel
Speed: Max 12m/min Inclination: Max 15°
Light source: forward light 6X10W LED; backward 2X10W LED
Material: Brass nickel-plating stainless steel
Minimum dimension( LxWxH): 780x580x490mm,
Maximum dimension( LxWxH): 1400x860x2355mm
Minimum weight: 180KG Maximum weight: 300KG
Cable Reel
2050m cable, diameter 8.5mm, 96.28g/m
Accurate meter counter: ±0.01m
Multi-pin cable, strong 500kg Kevlar reinforced
Automatic rewinding, maximum speed: 30m/min
Protection Class: IP63
Dimension: 1050X830X830mm
Weight: 300KG
HD P&T Camera
IP68 up to 10m water depth
Working ambient temperature: -10℃~50℃
Light source: 4x 3W LED light
The radial rotation 360°,horizontal rotation ±135°,one click to reset
10X optical, 12X digital
Laser measurement for crack
Lens: color 1/3”, 2592*1520, CMOS, viewing angle 6.7°-68°,sensitive 0.1 lux, auto-focusing
Dimension( LxWxH): 155x95x90mm
Weight: about 1.5kg
Easy-Sight is a professional intelligent pipeline solution supplier. We provide pipe periscope (Quickview), CCTV inspection robots, sewer inspection crawler, pipe crawler camera, sewer pipe inspection crawler camera, sewer crawler camera, drainage pipe cleaning equipment and so on. Want to know more? Please contact us.
