Ws2818 break-point resume/conyinue led strip
Quantité : 1meter Prix : 3.5usd
The features :

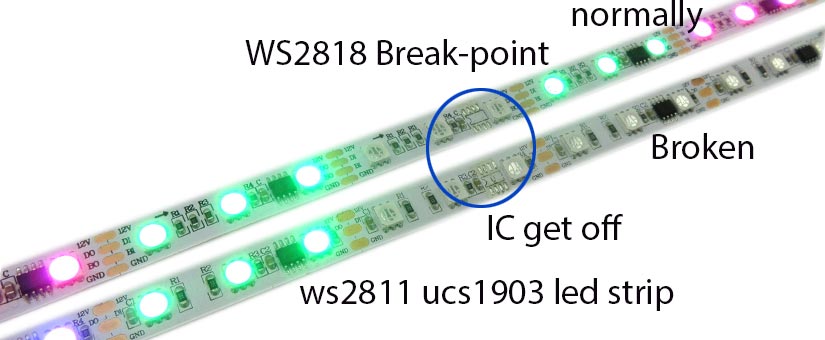

1)Break-point transmissoin led strip(same with ws2813),can replace ws2811 ucs1903
2)Programmable full color led strips---WS2818 IC
3)30/60pcs led per one meter
4) individually control ----- ----- 1 ic& 3led chip
5)Standard Reel Length: 5meter/roll, also can be customized.
6) Cutted: 3 integrated RGB LEDs per segment, can be cutted per 3LED.
you can cut this stuff pretty easily with wire cutters, there are cut-lines
every 0.65''/3.33cm(1 LED each), Solder to the 0.1'' copper pads and you're good to go.
7)Power supply: You must use a 12 DC power supply to power this strip, do not use higher than 12V or you can destroy the entire strip
8)3PIN JST SM connector(non-waterproof)soldered in each end of strip,extra 2single wire for powering in input side
9)Customised length available
The product description :
Model number |
WTP-ws2818-30led |
||
LED TYPEE |
ws2818 5050SMD LEDS |
||
PCB color |
white/black PCB |
|
|
PCB Width |
10mm |
||
View angle |
120 degree |
||
Function |
Break-point transmission |
||
POWER |
7.2W/M |
||
Voltage |
DC12V |
||
Installation |
wiht 3M adhesive back ,easy for installation |
||
IP rate |
IP20(non -waterproof /IP65(Silicon tube waterproof ) |
||
Package |
5M/reel .with anti-static bag ,or customized |
