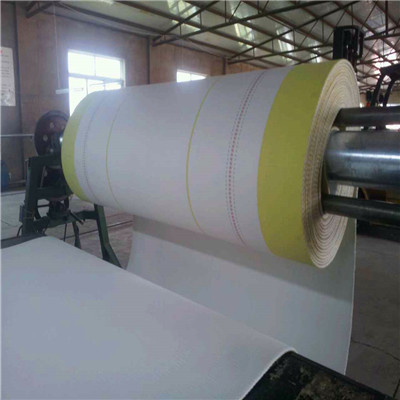

Woven Corrugated Belt

Prix : 80,00 €

huataogroup08 outlook com www htwirebelt com

Woven Corrugated Belt, Solid Corrugated Belt, Corrugated Belt,Corrugated Conveyor Belt

Specifications

Woven Corrugated Belt can be divided into woven middle speed corrugator Belt, high speed corrugator belt with low noise, enhanced middle speed corrugator belt, enhanced high speed corrugator belt (low noise) and hydrophilic type woven corrugator belt and traction belt/stack belt.

Woven Middle Speed Corrugator Belt is 5 layer structure belt, made of the high grade PET continuous filament yarn with high tension and low flexibility. Our specific structure design ensure the hydrop hilic and drying ability.

High speed corrugator Belt with Low Noise was developed to cooperate the high speed running and rapi d dying of the corrugated board. The unique structure and the high-quality Pet facilitates steam eva poration from the paperboard.The twill weave surface of the belt helps to reduce the noise and incre ase the friction coefficient.

Enhanced corrugator Belt with kevlar edge is a consistent development based on the high speed corrug ator belt. Kevlar fibers is characterised with good heat-resistence and abrasion-resistence.Because of the frequently changing paperboard widths and load requirement,the usage of kevlar fibers ensure the heat-resistence and wear-resistence ability of corrugator belt and prolong the lifespan.

Material: 100%PET

Width: 1200-3200mm

Thickness: within 10mm

Applt speed: 100m-300m/min

Air-permeability: Up to 2.08m3/m2 min

Heat resistance: 180 Centigrade -200 Centigrade

Fasteners Clipper Steel

Price : USD 80~100/ mm

Products Features

1.Heat Resistance

2.Easily cleaned

3.Long life time

4.Stable Dimension

5.High Tensile Strength

6.Good Air-permeability

7.Good Moisture Adsorption

8.Suitability: Suitable for linear speed 100m-300m/min

Application

Woven Corrugated Belt is a special part of corrugated machine automatic production line. Its main fu nction is to ensure the smooth of paperboard transportation and the rapid evaporation of the water i nboard.It is also used in honeycomb paperboard factory and cardboard factory.

PP bag or wood box, standard export package

Localisation : No.298, North Zhonghua Street, Shijiazhuang, Hebei, China, 050050 Shijiazhuang,
Personne à contacter : Erica Tang, 86 311 80690567
