Wood Hammer Mill
Quantité : 15-20 sets Prix : USD 1500-2000 per se

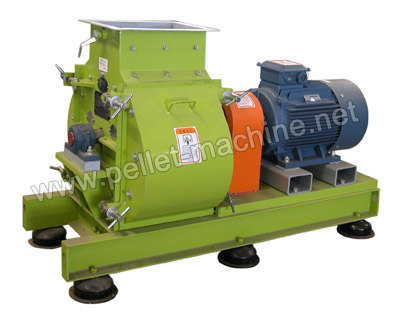

Wood Hammer Mill
Wood hammer mill is used to crush material by the collision between the high-speed hammer and materials.It is more suitable for milling relatively soft raw material like tree branch, cotton stalk, wheat straw etc. with diameter less than 50mm.After milled. the output size can reach diameter 3-5mm, then it is suitable for further processing.
Why Need A Hammer Mill
Massive mechanical pressure is required to make quality wood pellets. You can therefore see that particle size here is a matter of concern. Because big particles will not bond well together with smaller particles to make sure that the biomass sawdust is more suitable for producing high quality pellets. you should mix wood shavings, straws and grass in the hammer grinder to be ground into sawdust with diameter 3-5mm.When the diameter becomes smaller, it will increase the cohesion forces between the materials thus the finished pellet is both durable and easy to store.
Wood Hammer Working Theory
Hammer miss is made up of various beaters which rotate at high speed in the grinding chamber. The raw material is normally fed from the feed inlet and then instantly drops into crushing chamber where they are crushed and compressed by the beaters. Because of the speed and the number of the beaters, the material can be crushed to fine powder within a short period. You can adjust the clearance between and screens to get different size sawdust.
Wood Hammer Mill Features
1. The hammer mill has obvious advantages of consuming less energy but offering efficiency in grinding. labour and time saving.
2. Both coarse and fine grinding can be realized in short time.
3. The right aspiration can make materials go through screen quickly, reducing temperature of grinding chamber and increasing output efficiency.
Wood Hammer Mil Technical Data
Model |
FSP56*36 |
FSP56*40 |
FSP60*30 |
FSP60*45 |
FSP60*60 |
FSP60*75 |
FSP112*40 |
Capacity |
2.5--5t/h |
4--7t/h |
2--5.5t/h |
5--9t/h |
6--10t/h |
8--13t/h |
12--22t/h |
Diameter of rotor |
560mm |
560mm |
600mm |
600mm |
600mm |
600mm |
1120mm |
Width of chamber |
360mm |
400mm |
300mm |
450mm |
600mm |
750mm |
400mm |
Hammer QTY |
20 |
24 |
24 |
44 |
48 |
60 |
40 |
Speed of rotor |
2980r/min |
2980r/min |
2980r/min |
2980r/min |
2980r/min |
2980r/min |
1440r/min |
Power |
18.5/22kw |
30/37kw |
18.5/22kw |
45/55kw |
75/90kw |
90/110kw |
90/110kw |
