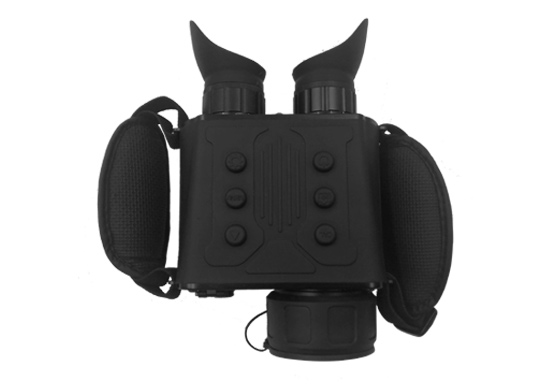

Wolf30 /Wolf60 Thermal Imaging Binocular
Quantité : 5000sets Prix : 1000~50000USD
Overview of Thermal Imaging Binocular Wolf30/Wolf60
Wolf30/Wolf60 are equipped with high-sensitivity thermal imaging module. You can also set to store images and videos. Quick start and flexible & easy operation will never let you down. Night, rain, snow, smoke and other extreme weather or bad conditions still can't prevent the device from providing a clear target image.
Features of thermal infrared binoculars Wolf30/Wolf60
Built-in photo and video functions
Proximity sensor with light leakage prevention
Take photos and record them in the device
Electronic compass
Technical Specifications of Thermal Imaging Binocular Wolf30/Wolf60
|
Item |
Wolf30 |
Wolf60 |
|||
|
Detector Data |
|||||
|
Type |
Uncooled FPA |
||||
|
Material |
aSi |
||||
|
IR resolution |
384×288 |
640×480 |
|||
|
Pixel pitch |
17μm |
||||
|
Spectral range |
8～14μm |
||||
|
NETD/Sensitivity |
≤70mK |
≤60mK |
|||
|
Lens Data |
|||||
|
Focal distance |
50mm |
75mm |
50mm |
75mm |
|
|
FOV |
7.5°×5.6° |
5.0°×3.7° |
12.4°×9.3° |
8.3°×6.2° |
|
|
Recognition distance(Vehicle) |
1200m |
1600m |
1200m |
1600m |
|
|
Recognition distance(Human) |
420m |
600m |
420m |
600m |
|
|
Eye relief |
22mm |
||||
|
Diopter |
-5~+5 |
||||
|
Image Performance |
|||||
|
Display |
800×600 binocular OLED |
1024×768 binocular OLED |
|||
|
Polarity/LUT mode |
Black hot/White hot |
||||
|
Frequency |
50Hz |
||||
|
Focus mode |
Manual |
||||
|
Noise reduction |
Digital filtering |
||||
|
Digital zoom |
2X ，4X |
2X, 4X |
|||
|
Image enhancement |
Manual |
||||
|
Startup time |
4s |
||||
|
Contrast/Brightness |
Manual |
||||
|
Compass |
No |
Yes |
|||
|
Interfaces |
|||||
|
Format |
Composite aviation plug |
||||
|
Power interface |
Yes |
||||
|
Video output |
PAL |
||||
|
Storage card |
32G |
||||
|
Power System |
|||||
|
Battery type |
2pcs 18650 lithium batteries |
||||
|
Operation time |
≥6h continuous(normal temperature) |
≥4.5h continuous(normal temperature) |
|||
|
Environment Parameters |
|||||
|
Operating temperature range |
-20℃～+50℃ |
||||
|
Storage temperature range |
-45℃～+70℃ |
||||
|
Encapsulation |
IP67 |
||||
|
Vibration& Shock |
MIL-STD-810F |
||||
|
Physical Data |
|||||
|
Size |
183mm×138mm×76mm(without eyepiece) |
195mm×140mm×90mm(without eyepiece) |
|||
|
Weight |
<1.2kg(50mm lens with battery)</span> |
≤1.3kg(75mm lens with battery) |
|||
|
Packing |
|||||
|
Standard |
Thermal imaging binocular, 4pcs batteries, Charger, Composite output cable, Warranty card, User manual, Certificate, Transport case |
||||
|
Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us. |
|||||
As one of the thermal camera suppliers. Zhejiang ULIRVISION Technology Co., Ltd. provides sf6 gas leak, sf6 gas leak analyzer and etc. If you want to know the details of sf6 gas leakage measurement or more, contact us.
