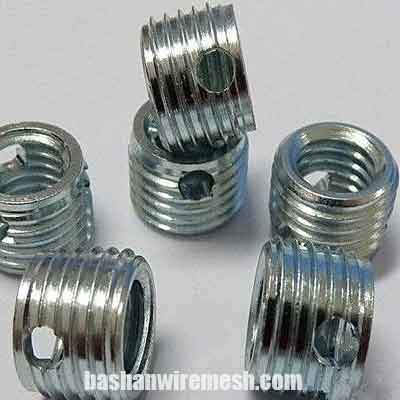

Wire Thread Insert Heli-Coil-Type Screw Thread Insert 304 316
Quantité : 100PCS Prix : USD 0.03/PC
304 316 wire thread insert heli-coil-type screw thread insert:
UNC Specification and Assembly Data:
UNC Specification and Assembly Data: | |||||||
Specification | Nominal Length | w | Dz | d0 | |||
L×d | |||||||
d×p | p | ×d | L1 | min | max | ||
2-56 (0.086) | 0.453 | 1d | 2.2 | 3 | 2.7 | 2.9 | 2.4 |
1.5d | 3.3 | 5.25 | |||||
2d | 4.4 | 7.4 | |||||
2.5d | 5.5 | 9.6 | |||||
4-40 (0.112) | 0.635 | 1d | 2.9 | 2.8 | 3.6 | 4 | 3.1 |
1.5d | 4.3 | 4.8 | |||||
2d | 5.8 | 6.8 | |||||
2.5d | 7.2 | 8.8 | |||||
5-40 (0.125) | 0.635 | 1d | 3.2 | 3.3 | 4 | 4.4 | 3.4 |
1.5d | 4.8 | 5.5 | |||||
2d | 6.4 | 7.8 | |||||
2.5d | 7.9 | 10 | |||||
6-32 (0.138) | 0.794 | 1d | 3.5 | 2.8 | 4.5 | 4.9 | 3.8 |
1.5d | 5.3 | 4.8 | |||||
8-32 (0.164) | 0.794 | 1d | 4.2 | 3.5 | 5.2 | 5.6 | 4.4 |
1.5d | 6.3 | 5.9 | |||||
2d | 8.3 | 8.3 | |||||
2.5d | 10.5 | 10.7 | |||||
10-24 (0.190) | 1.058 | 1d | 4.8 | 2.9 | 6.2 | 6.6 | 5.2 |
1.5d | 7.2 | 5 | |||||
2d | 9.6 | 7.1 | |||||
2.5d | 12.1 | 9.2 | |||||
12-24 (0.216) | 1.058 | 1d | 5.5 | 3.5 | 6.8 | 7.2 | 5.8 |
1.5d | 8.2 | 5.9 | |||||
2d | 11 | 8.3 | |||||
2.5d | 13.7 | 10.7 | |||||
1/4''-20 | 1.27 | 1d | 6.4 | 3.4 | 8.2 | 8.5 | 6.7 |
1.5d | 9.5 | 5.7 | |||||
2d | 12.7 | 8 | |||||
2.5d | 15.9 | 10.3 | |||||
5/16''-18 | 1.411 | 1d | 7.9 | 4 | 10 | 10.3 | 8.4 |
1.5d | 11.9 | 6.6 | |||||
2d | 15.9 | 9.3 | |||||
2.5d | 19.8 | 1.9 | |||||
3/8''-16 | 1.588 | 1d | 9.5 | 4.4 | 11.8 | 12.2 | 10 |
1.5d | 14.3 | 7.2 | |||||
2d | 19.1 | 10.1 | |||||
2.5d | 23.8 | 12.9 | |||||
7/16''-14 | 1.814 | 1d | 11.1 | 4.5 | 13.4 | 14 | 11.6 |
1.5d | 16.7 | 7.4 | |||||
2d | 22.2 | 10.3 | |||||
2.5d | 27.8 | 13.1 | |||||
1/2''-13 | 1.954 | 1d | 12.7 | 4.8 | 15.2 | 15.8 | 13.2 |
1.5d | 19.1 | 7.9 | |||||
2d | 25.4 | 10.9 | |||||
2.5d | 31.8 | 13.9 | |||||
9/16''-12 | 2.117 | 1d | 14.3 | 5.1 | 17 | 17.6 | 14.9 |
1.5d | 21.5 | 8.3 | |||||
2d | 28.6 | 11.5 | |||||
2.5d | 35.7 | 14.7 | |||||
5/8''-11 | 2.309 | 1d | 15.9 | 5.3 | 18.9 | 19.5 | 16.6 |
1.5d | 23.8 | 8.3 | |||||
2d | 31.8 | 11.8 | |||||
2.5d | 39.7 | 15 | |||||
3/4''-10 | 2.54 | 1d | 19.1 | 5.9 | 22.4 | 23 | 19.7 |
1.5d | 28.6 | 9.4 | |||||
2d | 38.1 | 13 | |||||
2.5d | 47.6 | 16.6 | |||||
7/8''-9 | 2.822 | 1d | 22.2 | 6.3 | 26 | 26.7 | 23 |
1.5d | 33.3 | 10 | |||||
2d | 44.5 | 13.7 | |||||
2.5d | 55.6 | 17.4 | |||||
1''-8 | 3.175 | 1d | 25.4 | 6.4 | 29.6 | 30.4 | 26.2 |
1.5d | 38.1 | 10.2 | |||||
2d | 50.8 | 14 | |||||
2.5d | 63.5 | 17.8 | |||||
1 1/8''-7 | 3.629 | 1d | 28.6 | 6.3 | 33.4 | 34.4 | 29.5 |
1.5d | 42.9 | 10 | |||||
2d | 57.2 | 13.8 | |||||
1 1/4''-7 | 3.629 | 1d | 31.8 | 7.1 | 36.7 | 37.7 | 33 |
1.5d | 47.6 | 11.3 | |||||
2d | 63.5 | 15.4 | |||||
1 3/8''-6 | 4.234 | 1d | 34.9 | 6.6 | 40.6 | 41.7 | 36 |
1.5d | 52.4 | 10.6 | |||||
2d | 69.9 | 14.4 | |||||
1 1/2''-6 | 4.234 | 1d | 38.1 | 7.4 | 43.9 | 45 | 39.5 |
1.5d | 57.2 | 11.6 | |||||
2d | 76.2 | 15.9 |
Remark: Please feel free to contact me if you have any questions. And we can receive customize.
Application:
In the aluminum, magnesium, copper alloy, plastic, plexiglass, bakelite and other low-strength engineering materials on the application, can significantly improve the strength and wear resistance. Application of steel, cast steel, cast iron, can improve the durability of screws.
Packing details:
304 316 Wire Thread Insert Heli-Coil-Type Screw Thread Insert
Packing Details
* Inner: Plastic bag
Out: Carton
* Pallet / Wooden Crate.
* Customized packing.
Processing & Delivery Time
* Common products in one week.
* Special products according to Contract.
* Small package is shipped by Air, DHL, FedEx etc. 4-10days.
* Big size package is shipped by sea, 10-30days.
MOQ
* 10000 Piece/Pieces
* If no Stock, please contact the supplier to confirm it.
* Payment terms: L/C,T/T,Western Union
* Trade term: EXW/ FOB/ CIF.
Delivery:
304 316 Wire Thread Insert Heli-Coil-Type Screw Thread Insert
304 316 Wire Thread Insert Heli-Coil-Type Screw Thread Insert |
|||
Process: |
Screws — Forming — Slotting — Threading —Surface treatment—Inspection—Cartons —Packing — Delivery |
||
Sample Availability |
We can make the sample within 7 days free of charge if there is available tool for us.( Freight collect |
