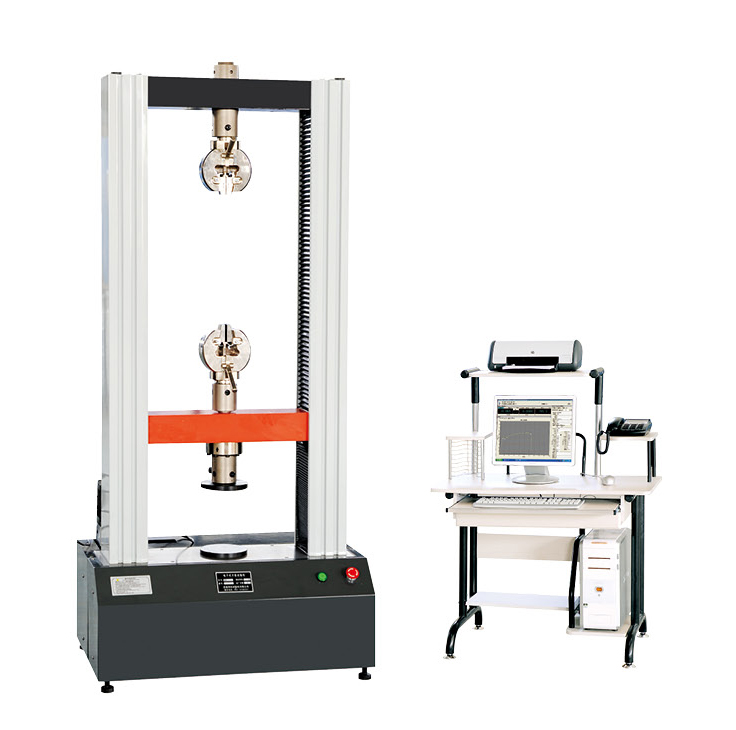

WDW-50 computerized electrical universal testing machine

1.Model: WDW-50

2.Product name: computerized electrical universal testing machine

3. Applications of testing machine

This machine is applicable to metal, cementing compound, tubes, sectional bars, aerospace, petrochemical, waterproof rolls, wire and cable, textile, fiber, rubber, ceramics, food, mechanical packaging, geo-textile, film, wood, paper and other industries and quality supervision department, and it also can be used in college for teaching demonstration.

4. Features of testing machine

1) Adopting aluminum alloy cover, with attractive streamline structure

2) Mainly used to test mechanical properties for metal, non-metal and composite materials

3) Adopting precision auto control and data acquisition system to realize fully digital adjustment to data acquisition and control process. During test, it can test max. Bearing tensile force, compression force, tensile strength, deformation, elongation, yield point and other technical specifications

4) After test, the above parameters can be calculated automatically through main controller according to the test parameters, which are set before test and meantime display the corresponding test results. All test parameters can be saved and inquired after test, also can be printed out.

5) With remote control box to realize speed adjustment of crossbeam, flexibly and freely switched

6) With functions of automatic return to original position, intelligently, efficiently, quickly

7) With limit position function of any working position and over voltage, over current protection functions, reliable and safe

8) With many control modes of constant speed control to force, stress, deformation, strain and low cycle and user self-programming control

9) Switch among many test curves: stress-strain curve, load-deformation curve, load-displacement curve, load-time curve, deformation-time curve, displacement-time curve. Partial enlargement, overlap and comparison.

5.Specs. of testing machine

No.

Item

Spec.

1

Max. Load

50KN

2

Resolution of test force

1/±300000

3

Resolution of displacement

0.001mm

4

Precision of crossbeam displacement

±0.5%

5

Precision of deformation

±0.5%

6

Measuring range of test force

1%-100%FS

7

Relative error of test force

±1%

8

Relative error at zero point

±0.5%

9

Speed of crossbeam

0.01-500mm/min

10

Precision of crossbeam speed

±1%

11

Speed range of load

0.005%-5%FS/s

12

Precision of load speed

When speed is less than 0.05FS/s, precision is within ±1% of set value, when speed is more than 0.05FS/S, precision is within ±0.5% of set value

13

Speed of deformation

0.005%-5%FS/s

14

Precision of deformation speed

When speed is less than 0.05FS/s, precision is within ±1% of set value, when speed is more than 0.05FS/S, precision is within ±0.5% of set value

15

Stroke of crossbeam

800mm

16

Effective tensile height

650mm

17

Effective test span

400mm

18

Effective compression height

700mm

19

Clamps for round specimen

Ø4-9mm

20

Clamps for flat specimen

0-7mm

21

Diameter of compression platen

100mm

22

Voltage and power

220V±10%, 50Hz, 1KW

23

Dimension of main machine

755X520X1780mm

24

Weight of main machine

about 400kg

Localisation : no. 6,row 2,north area of qilu qixianwenhuacheng,shihzhong district, 250000 jinan,
Personne à contacter : sophie guo, 86 531 66695633
