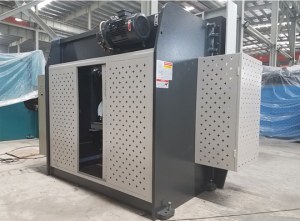

WC67K NC Hydraulic Plate Press Brake With E21 Controller
WC67K NC Hydraulic Plate Press Brake With E21 Controller
Sheet metal plate press brake with E21 NC systemFrequency converter controls the positioning of X,Y axisMain motor:SIEMENS GermanyValve:Bosch Rexroth GermanyElectrics:Schneider FranceStandard Press Brake; Hydraulic Plate Bending Machine
1. The WC67K NC Hydraulic Press Brake-E21 design meets EU international standards. The fuselage eliminates internal stress by annealing and ensures higher precision and strength. All NC hydraulic plate bending machines are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel with the latest technology;
2. The WC67K series torsion axis hydraulic plate press brake uses Chinese ESTUN NC control system to help you increase your productivity and keep the lowest cost and lower maintenance costs. High quality and repetitive bending is obtained by using synchronized cylinders and valves;
3. E21 system programming control system and inverter realize the accurate positioning function of X axis Y axis;
4. Cutting-edge frequency response hydraulic control technology, rigid upper beam runs on 8-point bearings with bending precision of +/-0.01 mm;
5. Optional V-axis compensation function, and select the appropriate mold to bend complex shape work pieces easily.
OPTIONAL Equipments:
Photo-electric protection:The scientific and efficient guarantee of the operator's safety during operation. |
|
Mechanical crowning:Improving the bending angle accuracy and linearity. |
|
Mechanical quick clamps:Changing the upper die more safe and efficiency, improve the efficiency of work. |
NC Hydraulic Metal Plate Bending Machine Standard Press Brake Related Equipment:
1. Chinese E21 NC controller.2. Y-axis and X-axis system control adjustment and frequency converter controls the positioning of them.3. Linear guide rail and ball screw accuracy of 0.01mm(HIWIN,TAIWAN).4. Steel mono-block construction.5. Adjustable stop fingers.6. Standard electrics from Schneider, France.7. Standard oil tube connectors from EMB Germany.8. Standard valves and oil pump from Bosch Rexroth Germany.9. Standard main motor from Siemens Germany.10. Hydraulic and electrical overload protection.11. Light guards ensure the safety of operators during operation.
Chinese ESTUN E21 NC System:
- Monochrome LCD box panel.
- Integral factor freely programmable.
- Automatic positioning control(common motor or conventer).
- Spindle offset allowance.
- Internal time relay.
- Stock counter and Internal time relay.
- Backgauge position display with 0.01mm resolution.
- Language: Chinese and English menu operation.
- Program memory of up to 40 programs and up to 25 steps per program.
-
WC67K NC Hydraulic Plate Press Brake With E21 Controller
-
WC67K/WC67Y Series Hydraulic Press Brake (Plate Bending Machine) Technical Parameters |
|||||||||
Type |
Nominal Force |
Worktable Length |
Poles Distance |
Throat Depth |
Slider Travel |
Max Open |
Power |
Weight |
Dimension |
|
KN |
mm |
mm |
mm |
mm |
mm |
KW |
kg |
mm |
40T/2000 |
400 |
2000 |
1350 |
230 |
100 |
320 |
5.5 |
2750 |
2000×1200×1910 |
40T/2500 |
400 |
2500 |
1850 |
230 |
100 |
320 |
5.5 |
3000 |
2500×1200×1910 |
50T/2000 |
500 |
2000 |
1350 |
230 |
100 |
320 |
5.5 |
2950 |
2000×1200×1910 |
50T/2500 |
500 |
2500 |
1850 |
230 |
100 |
320 |
5.5 |
3400 |
2500×1210×2000 |
63T/2500 |
630 |
2500 |
1900 |
250 |
100 |
320 |
5.5 |
4000 |
2500×1300×2210 |
63T/3200 |
630 |
3200 |
2560 |
250 |
100 |
320 |
5.5 |
4800 |
3200×1300×2210 |
80T/2500 |
800 |
2500 |
1990 |
300 |
100 |
320 |
7.5 |
5000 |
2500×1400×2300 |
80T/3200 |
800 |
3200 |
2560 |
320 |
100 |
350 |
7.5 |
6020 |
3200×1500×2300 |
80T/4000 |
800 |
4000 |
3000 |
320 |
100 |
350 |
7.5 |
7000 |
4000×1500×2400 |
100T/2500 |
1000 |
2500 |
2020 |
320 |
150 |
350 |
11 |
6000 |
2500×1600×2400 |
100T/3200 |
1000 |
3200 |
2600 |
320 |
150 |
400 |
11 |
6800 |
3200×1600×2600 |
100T/4000 |
1000 |
4000 |
3000 |
320 |
150 |
400 |
11 |
8400 |
4000×1600×2700 |
125T/2500 |
1250 |
2500 |
2020 |
320 |
150 |
350 |
11 |
6500 |
2500×1600×2400 |
125T/3200 |
1250 |
3200 |
2580 |
320 |
150 |
400 |
11 |
7200 |
3200×1600×2600 |
125T/4000 |
1250 |
4000 |
3000 |
320 |
150 |
400 |
11 |
8800 |
4000×1600×2700 |
160T/3200 |
1600 |
3200 |
2600 |
320 |
200 |
460 |
11 |
10500 |
3200×1700×2700 |
160T/4000 |
1600 |
4000 |
3000 |
320 |
200 |
460 |
11 |
11500 |
4000×1700×2800 |
160T/5000 |
1600 |
5000 |
4000 |
320 |
200 |
460 |
11 |
14000 |
5000×1900×3100 |
160T/6000 |
1600 |
6000 |
5000 |
320 |
200 |
460 |
11 |
19500 |
6300×1900×3200 |
200T/3200 |
2000 |
3200 |
2500 |
320 |
200 |
460 |
11 |
12500 |
3200×1950×2800 |
200T/4000 |
2000 |
4000 |
3000 |
320 |
200 |
460 |
11 |
13600 |
4000×1950×2800 |
200T/5000 |
2000 |
5000 |
4000 |
320 |
200 |
460 |
11 |
14500 |
5000×1950×3000 |
200T/6000 |
2000 |
6000 |
5000 |
320 |
200 |
460 |
11 |
21000 |
6000×1950×3330 |
250T/3200 |
2500 |
3200 |
2500 |
400 |
250 |
590 |
18.5 |
19000 |
3250×2000×3200 |
250T/4000 |
2500 |
4000 |
3000 |
400 |
250 |
590 |
18.5 |
20200 |
4000×2000×3400 |
250T/5000 |
2500 |
5000 |
4000 |
400 |
250 |
590 |
18.5 |
23500 |
5000×2000×3400 |
250T/6000 |
2500 |
6000 |
5000 |
400 |
250 |
590 |
18.5 |
27500 |
6000×2000×3400 |
300T/3200 |
3000 |
3200 |
2530 |
400 |
250 |
590 |
22 |
20500 |
3200×2000×3450 |
300T/4000 |
3000 |
4000 |
3000 |
400 |
250 |
590 |
22 |
22500 |
4000×2000×3450 |
300T/5000 |
3000 |
5000 |
4000 |
400 |
250 |
590 |
22 |
25000 |
5000×2000×3450 |
300T/6000 |
3000 |
6000 |
5000 |
400 |
250 |
590 |
22 |
30000 |
6000×2000×3450 |
400T/4000 |
4000 |
4000 |
3000 |
400 |
250 |
590 |
30 |
25000 |
4000×2180×3400 |
400T/5000 |
4000 |
5000 |
4000 |
400 |
250 |
590 |
30 |
29000 |
5000×3180×3500 |
400T/6000 |
4000 |
6000 |
5000 |
400 |
250 |
590 |
30 |
35000 |
6000×2180×3800 |
500T/4000 |
5000 |
4000 |
3000 |
400 |
250 |
590 |
45 |
35000 |
4000×2580×3500 |
500T/5000 |
5000 |
5000 |
4000 |
400 |
250 |
590 |
45 |
44000 |
5050×3500×3700 |
500T/6000 |
5000 |
6000 |
5000 |
400 |
320 |
590 |
45 |
55000 |
6050×3500×3700 |
600T/4000 |
6000 |
4000 |
3000 |
400 |
320 |
590 |
55 |
45000 |
4050×4500×3700 |
600T/6000 |
6000 |
6000 |
5000 |
400 |
320 |
590 |
55 |
60000 |
6050×4500×3700 |
800T/6000 |
8000 |
6000 |
5000 |
400 |
320 |
590 |
55 |
75000 |
6300×4500×6000 |
Components Explore More Related Products
NC Hydraulic Metal Plate Press Brake Bending Machine Components:
Serial No. |
Part Description |
Brief instruction |
Country of origin |
1- |
Estun NC System |
ESTUN E21 |
China |
2- |
Electrical components |
Schneider Electrical |
French |
3- |
Main Motor |
Siemens |
Germany |
4- |
Backgauge & RAM Drive |
Converter from Delta |
Taiwan, China |
5- |
Ball screw/ Liner guide |
HIWIN |
Taiwan, China |
6- |
Foot switch |
KACON |
Korea |
7- |
Travel switch |
Schneider Electrical |
French |
8- |
Hydraulic System |
Bosch-Rexroth |
Germany |
9- |
Hydraulic Pump |
SUNNY |
USA |
10- |
Tubing connector |
EMB |
Germany |
11- |
Seal Ring |
NOK |
Japan |
12- |
Die |
One set standard tools from GLDMA |
China |
13 |
Front/Back Safety Guard |
GLDMA |
China |
Optional |
|||
1- |
Safety light curtain |
KELI |
China |
2- |
Laser Safety Protection |
FIESSLER |
Germany |
3- |
Manual Crowning system |
GLDMA |
CHINA |
4- |
E200P / DA41s |
Estun/Delem |
CHINA/Dutch |
5 |
Fast Clamp |
KYOKKO |
Japan |
Safety Configuration |
|||
1- |
Warning of high oil temperature |
■Yes□No |
|
2- |
High oil pressure protection |
■Yes□No |
|
3- |
Motor overload protection |
■Yes□No |
|
5- |
Left & Right side protection |
■Yes□No |
Fixed type(metal) |
6- |
Electricity leakage protection |
■Yes□No |
|
9- |
Safety standards |
■CE□CSA■NR-12□OSHA |
