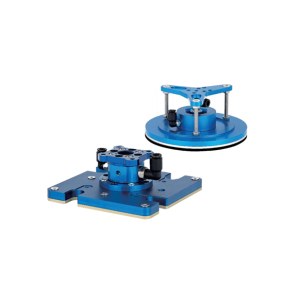

WAFER GRIPPER
SLW Series
Reduce fragment rate
With vacuum release port, improve efficiency
Easy to install, different types of option
Simple structure, and integrated design, could connect to compressed air directly, with no need extra vacuum generator
Features
Thin Lip Wafer Gripper
Multihole adsorbing area, prevent the physical deformation of the fragile workpiece
Integrated with a suction cup and vacuum generator
Vertical exhaust and lateral exhaust for option
Vertical and horizontal mounting types for option
Selection Guide
SLW Series Special Vacuum Gripper
SLW 115 PK - M10 I - F1
① ② ③ ④ ⑤ ⑥
|
① Series |
Dimension |
③ Material of suction cup |
④ Specification of vacuum generator |
⑤ Exhaust direction |
⑥ Mounting flange |
|
SLW |
100 - 100×55mm |
PK - PEEK |
M10 - Diameter φ10mm |
I - Vertical exhaust |
F1 - Vertical，55×6mm |
|
115 - 115×115mm |
AE - Aluminum plate+ |
M15 - Diameter φ15mm |
Y - Lateral exhaust |
F3 - Horizontal，71×9mm |
|
|
146 - 146×146mm |
EPDM support cushion |
|
|
F9 - Vertical, Triangular flange |
|
|
170 - 170×105mm |
FT - Sponge+PTFE |
|
|
|
|
|
120 - φ120mm |
|
|
|
|
|
|
150 - φ150mm |
|
|
|
|
|
|
180 - φ180mm |
|
|
|
|
Dimensions
Thin Lip Wafer Gripper
We provide vacuum suction tool, soft pneumatic gripper, pneumatic soft gripper, airbest vacuum pump, etc. For more information, please feel free to contact us!
