VSI Sand Making Machine
Quantité : 1 Prix : 10,00 €
Product description:
VSI series Sand Making machine is the latest successful new generation sand making machine with the international advanced level. After technology accumulation for many years, production of modern precision machining equipment ensures the leading position of the VSI series sand making machine in the same industry. Excellent value for money, reliability, unique in its class.
Vertical Impact Shaft Impact Crusher is improved basing on latest research result of authoritative experts from Germany, and connecting with Chinese present working conditions. It is especially suitable for making qualified stone and sand for highway, high-speed railway, high building, hydropower dam construction, concrete mixing station. It is the top preferring equipment in artificial sand making and stone reshaping industry.

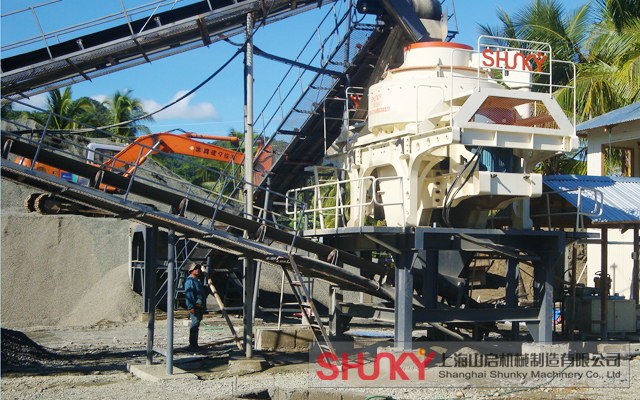

——Sand making plant
Features:
1. Large processing capacity and high capacity of ideal outputs-Compared to traditional equipment in the same power, production increase 30% and working stable.
2. Low consumption of wear-resistant parts-It designs the best point of impact crushing chamber materials.
3. Fine shape of final products-The product is cube, it has good grain shape and also can adjust fineness modulus; especially it is suitable for artificial sand and stone shaping, compared to the traditional equipment, it can increase 30%.
4. Easy maintenance with hydraulic device-Hydraulic opening the lid device
5. Simple installation and easy operation-Set off alarm and vibration device, if the device happens adverse operation, it can give us a warning, then allowing devices to stop working, and to protect the machine's purpose.
6. Safe and reliable with automatic check-German original of thin oil lubrication station, to make sure the supply of the oil with double oil pump; stop working without oil or hydraulic pressure, Oil cooling and heating equipment to ensure the bearing lubrication is always at the optimum state.
7. One machine for multi-purpose, flexible application-The equipment is light weight, and varied installation. It is to install ,repair, maintain and operate. VSI sand making machine only make minor adjustments, it can maximize their outstanding performance.
8. Rare oil lubrication and automatic maintenance-Unique structure of the feed broken with a variety of crushing cavity can be very easy to achieve "a stone at stone" and "stone blacksmith" conversion, so as to solve the problem with one machine. If you want to change the VSI crusher, you don't make big adjustment, it can meet the needs of different users: artificial sand, gravel, plastic, abrasive materials, etc.
9. International quality guarantee-The latest technology of Germany, advanced technology and automotive technology riveting appearance of sand-blasting and painting process applications, greatly improve the inherent quality of equipment and appearance quality. Core components are used the world's leading brands (high-precision bearings TIMKEN bearing grade) to ensure a low failure rate.
10. Environmental protection-Sand making machine id low noise and no pollution. Unique air from the circulatory system which greatly reduces the amount of outside ventilation to reduce dust, environmentally friendly. VSI sand making machine also set aside and install a variety of specifications for dust removal equipment.
Specification:
Model |
VSI-7611 |
VSI-8518 |
VSI-9526 |
VSI-1140 |
VSI-1145 |
|
Capacity (t/h) |
Center and Ring Feeding |
120-180 |
200-260 |
300-380 |
450-520 |
500-640 |
Center Feeding |
60-90 |
100-130 |
150-190 |
225-260 |
250-360 |
|
Max |
Soft Material |
<35</p> |
<40</p> |
<45</p> |
<50</p> |
<50</p> |
Hard Material |
<30</p> |
<35</p> |
<40</p> |
<45</p> |
<45</p> |
|
Rotation Speed |
1700-1890 |
1520-1690 |
1360-1510 |
1180-1310 |
1100-1310 |
|
Power for Double Motor(KW) |
110-150 |
180-220 |
264-320 |
400-440 |
400-440 |
|
Overall Dimension |
3700 |
4140 |
4560 |
5000 |
5100 |
|
Power Source |
380V;50Hz |
|||||
Vibrating Sensor |
Inspect scope:0.1-20mm/s adjusted continuously |
|||||
Lubrication Hydraulic Pressure Station |
Power for Double Oil Pump |
2×0.31 |
||||
Safety |
To make sure the supply of the oil with double oil pumps; Stop working without oil or hydraulic pressure; Temperature falls when the water cools; Start the motor by heating it in winter. |
|||||
Overall Dimension(mm) |
820×520×1270 |
|||||
Power for Oil Box Heater |
2 |
Note: shunky machinery keeps the right of changes of design and specification; Any change shall not be advised additionally.
