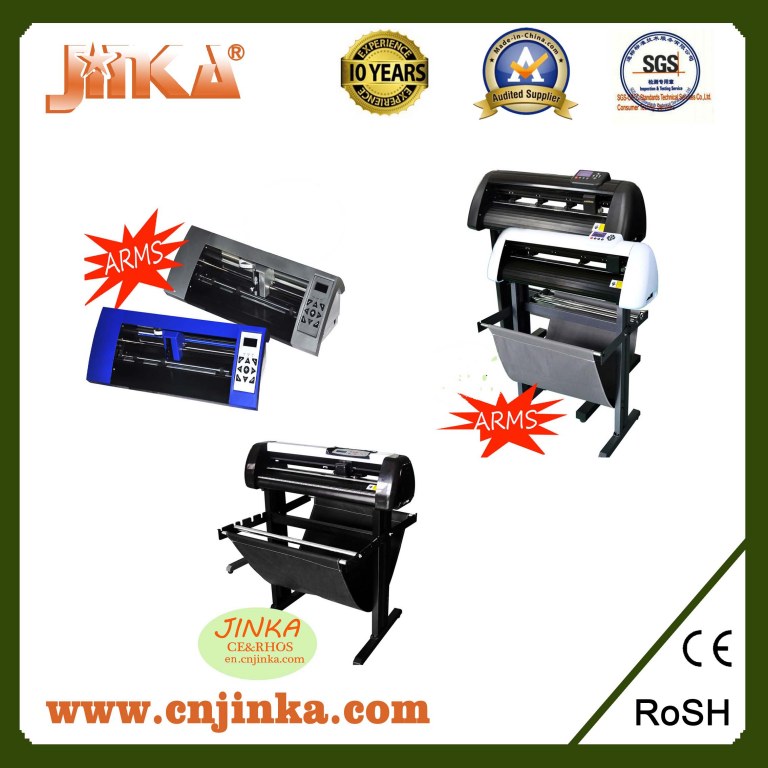

Vinyl Cutter
Quantité : 1 piece Prix : $135~$490
Product One Description
Character Features 330
A small cutting and drawing plotter with a registration mark laser on it. It
Drawing, cutting, kiss-cutting the outline sketch of the printed cartoon or other graphs for your business and hobbies
Powered by a 16V DC adaptor. Compatible with Windows 7(64bits &32bits), VISTA, XP, 2003, 2000.
A Windows driver is provided and enables output from leading drawing software (eg CorelDRAW 12, Adobe IllustratorCS).
| Model Item | JK240 | JK330 | |
| Max. cutting range | 190*2000mm | 290*2000mm | |
| Material Width | A4 size | A3 size | |
| Net weight/Gross weight | 4.5/5.5kgs | 5.5/6.5kgs | |
| Packing size | 49*26*35cm | 58*26*35cm | |
| Configuration | Grit-rolling | ||
| Drive System | Stepping motor | ||
| plotting speed | 10-280mm/s(7 ranks optional) | ||
| cutting force | 60-350g(7 grades optional) | ||
| Available Material |
PVC or lactoprene sheet(less than 0.1mm thickness) Drawing paper, postcard, back-glue print paper, ink jet photo paper |
||
| interface | USB1.0 or RS232 | ||
| Power supply |
Dedicated adapter, DC 16V 2.5A Input AC100V~AC240V; 47HZ-66HZ |
||
| Language Format | DMPL/HPGL | ||
| Operation Environment |
Temperature: 5 centigrade ~30 centigrade Relative humidity: (35%-80%)without condensation |
||
| N, W/G. W (kg) | 4.5/5.0KG | 5.5/6.0KG | |
| colors | White color, White & Blue color, Red color, black color, Red & Black color | ||
Product Two Description
Character Features
Professionally Integrated circuit with high precision and high speed
In time regulation on speed and force, setup the origin point at discretion
Advanced aluminum alloying structure excellent workmanship, long used life and durability
Supporting various of popular software on the market.
Origin imported high speed stepping motor, low noise, cutting more precisely
Unique blade soft landing function, easy for cutting
Compatible with many computer operation systems such as Windows XP, Vista, Windows7 (32bit&64bit)
Professionally Integrated circuit with high precision and high speed
In time regulation on speed and force, setup the origin point at discretion
Advanced aluminum alloying structure excellent workmanship, long used life and durability
Supporting various of popular software on the market.
Origin imported high speed stepping motor, low noise, cutting more precisely
Unique blade soft landing function, easy for cutting
Compatible with many computer operation systems such as Windows XP, Vista, Windows7 (32bit&64bit)
| Model Item | JK721 | JK871 | JK1101 | JK1351 |
| Max. Paper Width | 720mm | 870mm | 1100mm | 1350mm |
| Max. Plotting Width | 630mm | 780mm | 1000mm | 1260mm |
| Net Weight/Gross Weight | 11/21kgs | 12/23kgs | 15/27kgs | 17/31kgs |
| Packing Size | 101*37*45cm | 116*37*45cm | 139*37*45cm | 164*37*45cm |
| Interface | COM, USB & LPT (optional) | |||
| Language Format | DMPL/HPGL | |||
| Max. Plotting Speed | 500mm/s | |||
| Max.Cutting Force | 500g | |||
| Cutting Tool | Imported hardness alloy steel blade | |||
| Power Supply | AC90V~AC240V | |||
| Operation Environment |
Temperature: 5 centigrade ~35 centigrade Relative humidity: (30%-50%)without condensation |
|||
| Colors | White color, black color | |||
Product Three Description
Character Features
Characteristic design, adjusting cutting force and plotting speed at any time
European popular large screen high bright display, clearly to operate
Real USB interface to connection computer also support hot-plug
Serial and parallel portlarge memoryquick off-line
Domestic popular plotting language, supporting many popular kinds of software at home and abroad
Unique double cutter position, double pressing strips for processing different kinds of materials.
| Model Item | GC-24ABJ | GC-48ABJ |
| Max. paper width | 740mm | 1350mm |
| Max. plotting width | 630mm | 1240mm |
| Net weight/Gross weight | 11/21kgs | 17/30kgs |
| Packing size | 125*36*44 | 158*36*44 |
| interface | Serial port & USB port&Udisk | |
| Language Format | DMPL/HPGL | |
| Max. plotting speed | 1200mm/s | |
| Max. cutting force | 1000g | |
| Cutting Tool | Imported hardness alloy steel blade | |
| Power supply | AC90V~AC240V | |
| Operation Environment |
Temperature: 5centigrade ~35 centigrade Relative humidity: (30%-50%)without condensation |
|
| colors | White color, black color | |
