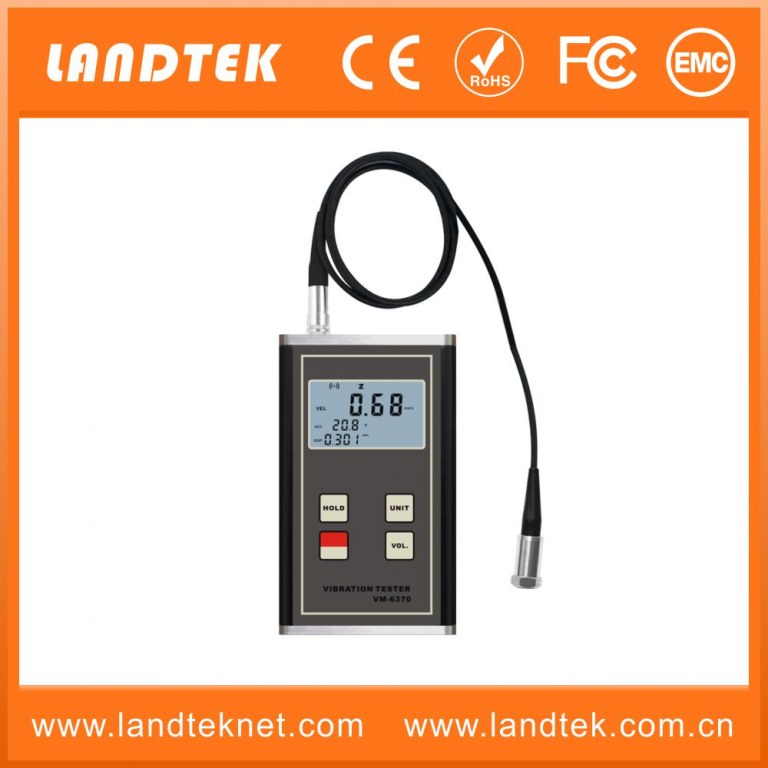

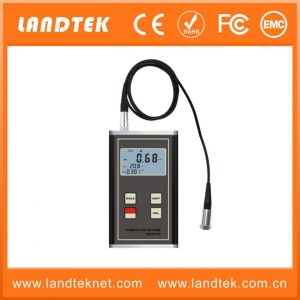

Vibration Meter VM-6370
Quantité : 2000 Prix : $1
Vibration Meter
Size: VM-6370
Applications:
Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Speci fically designed for present measuring various mechanical vibration. So as to provide the data for t he quality control, run time and equipment upkeep.
Features:
* Can display the parameters of Displacement, Velocity and Acceleration simultaneously.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignmen t and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality co ntrol,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use “USB data output” and “RS-232 data output” to connect with PC.
Details:
Sensor | Piezoelectric Transducer |
Measuring Parameters & Range |
Acceleration: 0.1~400 m/s² 0.3~1312 ft/s² 0.0~40 g Equivalent Peak
|
Velocity: 0.01~400 mm/s 0.004~16.0 inch/s True RMS | |
Displacement: 0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak | |
Frequency: 5 Hz ~ 1k Hz | |
Frequency Range | Acceleration: 10 Hz ~ 10k Hz |
Velocity: 10 Hz ~ 1k Hz | |
Displacement: 10 Hz ~ 1k Hz | |
Accuracy | 5 % of Reading + 2 digits |
Metric / Imperial Conversion | |
Analogue Output | AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k) |
Max. Value Hold | |
Power Off | Manual Power Off or Auto Power Off |
Battery Indicator | Low Battery Indicator |
Data Output | USB, RS-232 |
Operating Conditions | Temperature: 0~50 °C Humidity: <90 %RH</td> |
Power Supply | 2 x 1.5V AA size (UM-3) Battery |
Dimensions | 130 x 76 x 32 mm |
Weight | 340 g (Not Including Batteries) |
Accessories:
Standard Accessories:
1. Main Unit
2. Magnetic Suction Seat
3. Piezoelectric Transducer
4. Probe (Cone)
5. Probe (Spherical)
6. Carrying Case
7. Manual Book
Optional Accessories:
1. Headset
2. USB, RS-232 data cable with software
For more details,please do not hesitate to contact us.Thank you!
