Vacuum thermal resistance furnace
|
Main technical data of Vacuum thermal resistance furnace |
|||||||
|
Model |
Effective working dimension (mm) |
Max temperature (℃) |
Ultimate pressure (pa) |
Pressure rising rate (pa/h) |
Heating power (KW) |
Working pressure (T) |
Temperature uniformity (℃) |
|
RVY-113 |
100×100×300 |
2000 |
5×10-3 |
0.67 |
30 |
10 |
±5 |
|
RVY-223 |
200×200×300 |
2000 |
5×10-3 |
0.67 |
50 |
20 |
±5 |
|
RVY-446 |
400×440×600 |
2000 |
5×10-3 |
0.67 |
100 |
20 |
±5 |
|
RVY-557 |
500×500×700 |
2000 |
5×10-3 |
0.67 |
160 |
100 |
±5 |
|
RVY-669 |
600×60×900 |
2000 |
5×10-3 |
0.67 |
220 |
100 |
±5 |
|
RVY-8810 |
800×800×1000 |
2000 |
5×10-3 |
0.67 |
350 |
200 |
±5 |
|
RVY-9912 |
900×900×1200 |
2000 |
5×10-3 |
0.67 |
500 |
400 |
±5 |
Vacuum thermal resistance furnace,vacuum furnace
Product description:

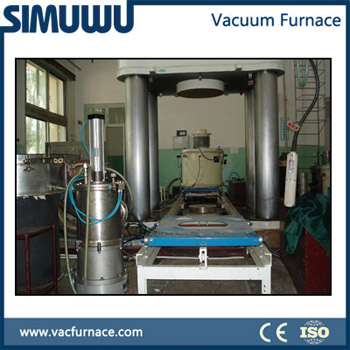

Vacuum hot-pressing furnace is a complete set of equipments, that forms materials by hot-pressing under the condition of vacuum (or other) atmosphere. It is applied in the metal composite or ceramic powder composite hot-pressing sintering molding.The equipment adopts the resistive heating, driven by oil cylinder pressure head under pressure, which can realize automatic compression pressure, slow to load for the displacement and rising speed can realize automatic control, the unique head sealing structure realizes long service life.
