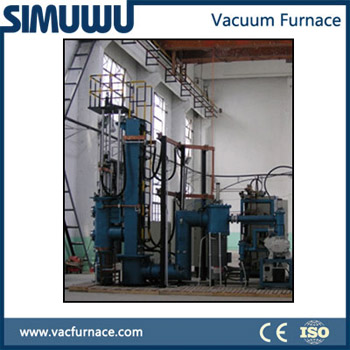

Vacuum consumable electrode arc furnace
Product description:
Use:
Mainly used in the vacuum smelting and ingot casting of titanium, zirconium, tantalum, niobium, tungsten, molybdenum and other precious metals and high temperature precision alloy, special steel.
Features:
1 Adopt gantry frame structure as the main body. Consist of spinning frame, lifting frame and support frame, the structure is stable and performance is reliable。
2 Indexing mechanism adopts slewing ring bearing of large diameter and electric wheel box components,high automation, less wear.
3 With a standard ball linear guide, the furnace chamber lifting movement is more stable and reliable, and reduce the wear and tear, easy to maintenance and change parts.
4 In the form of double location with furnace body rotating while two crystallizers not moving make the operation simple, safe, and save space.
5 Effective pumping speed of vacuum system configuration, ensure to meet the extraction requirements when the sponge titanium melting.
6 Electrode rod sealing device become more reasonable,it is easier to change the sealing rings.
7 Electrode pole head is designed with reliable welding mechanism inside the furnace, greatly increase the success rate of the furnace welding and has no impact on the ball screw transmission, improving the service life of ball screw.
8 Copper crucible on the seal groove is u-shaped slot, convenient to clean the melting collapse splatter attached to the crucible furnace.
9 Computer monitoring system, can control the whole process,record the key data of the production process,provide data support for production process, product quality, accident treatment.
10 Electrode weighing system made it possible to control the melting speed,realize automatic melting by the arc pressure.
11 Consumable electrode X, Y direction adjustment system to ensure accurate alignment
Structural features:
Electrode weighing, consumable electrode x and y direction adjustment
Main technical data
Model |
Capacity (Kg) |
Working voltage (V) |
Maximum current (A) |
Ultimate vacuum (Pa) |
Pressure rising rate (Pa/h) |
Cooling water consumption (M3//h) |
VCF-200 |
200 |
20-40 |
25000 |
6X10-2 |
2 |
4 |
VCF-500 |
500 |
20-40 |
80000 |
6X10-2 |
2 |
5 |
VCF-800 |
800 |
20-40 |
12000 |
6X10-2 |
2 |
6 |
VCF-1T |
1000 |
20-40 |
12000 |
6X10-2 |
2 |
10.5 |
VCF-1.5T |
1500 |
20-40 |
16000 |
6X10-2 |
2 |
16 |
VCF-2T |
2000 |
20-40 |
18000 |
6X10-2 |
2 |
20 |
VCF-3T |
3000 |
20-40 |
24000 |
6X10-2 |
2 |
30 |
Personne à contacter : Kevin Liu, 0086 21 50878190
