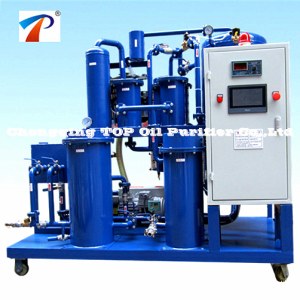

Used Cooking Oil Recycling For Biodiesel Oil Production, Animal Oil/Plant Oil/Edible Oi...
Application
COP is for filtering waste cooking oil, dirty vegetable oil, trench oil, swill oil, animal oil etc. It effectively and completely removes particles, odor, water, acid, etc. from the waste oil. The treated oil is clean, limpidity, and with good smell. COP is an ideal purification machine for bio-diesel factory, fried food factory, oil restaurant, cooking oil factory, vegetable oil factory, waste oil collecting store etc. For edible usage of treated oil, we can make COP of stainless steel.
Features
1. This plant is mainly composed of two parts: press filter and vacuum oil purifier system. The press filter removes the big or tiny impurities; The precision reaches to 1 Micro. The vacuum system is equipped with filters of three grade (primary filter, mass water separator, and fine filer).
2. The primary filter of stainless steel is anti-rust and anti-corrupt. It mainly removes the residual impurities which escape from the press filter, making sure the treated oil won't have any impurity when it goes into the water separator and vacuum separator.
3. The water separator mainly removes mass water from oil. After the water separator, the oil just contains the tiny water and soluble water.
4. After water separator, oil goes into the vacuum separator which adopts three-dimensional duplex evaporation and film evaporation. The tiny water, soluble water, acid, , other volatility liquid and so on can be removed completely and effectively.
5. For stainless steel fine filter, the purification hole is less than 1 Micro, which can make sure the filtered oil is completely clear.
Technical Parameters
Parameters |
Unit |
COP-10 |
COP-20 |
COP-30 |
COP-50 |
COP-100 |
COP-150 |
COP-200 |
COP-300 |
||
Flow Rate |
L/min |
10 |
20 |
30 |
50 |
100 |
150 |
200 |
300 |
||
Working Vacuum |
MPa |
-0.06 ~ -0.095 |
|||||||||
Working Pressure |
MPa |
≤0.4 |
|||||||||
Temperature Range |
℃ |
0 ~ 100 |
|||||||||
Power supply |
|
380V,50Hz, 3 phase (or as customized) |
|||||||||
Working noise |
dB(A) |
≤75 |
≤75 |
≤75 |
≤78 |
≤78 |
≤78 |
≤80 |
≤82 |
||
Heating power |
KW |
36 |
40 |
45 |
72 |
80 |
90 |
120 |
135 |
||
Total power |
KW |
38 |
42 |
47 |
75 |
87 |
101 |
135 |
147 |
||
Inlet/outlet |
mm |
25 |
25 |
25 |
32 |
42 |
50 |
50 |
60 |
||
Net weight |
Kg |
450 |
550 |
600 |
750 |
850 |
1000 |
1200 |
1500 |
||
Overall dimensions |
mm |
1500×1000×1200 |
1500×1050×1600 |
1500×1050×1650 |
1600×1150×1700 |
1750×1250×1800 |
1900×1600×1950 |
1900×1700×2000 |
2100×1700×2100 |
Guarantee Value
Item |
Guarantee indexes |
Moisture content |
≤50 PPM |
Demulsification value |
New oil≤15min,running oil≤30min |
Impurity size |
≤1 micron (no free carbon) |
Gas content |
≤0.1% |
Clean degree |
≤4 Grade (NAS1638) |
