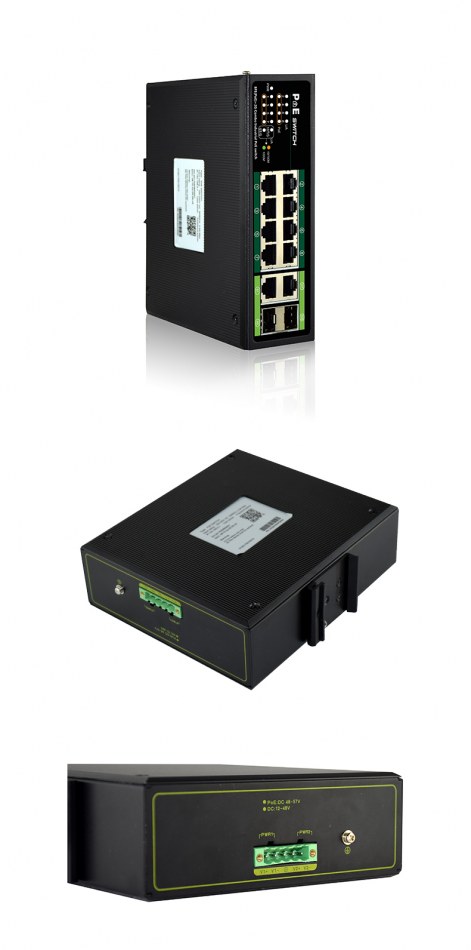

Unmanaged Industrial Switch PM3012FSI
Quantité : 200 Prix : 15-300USD
This hp industrial switch poe is designed for severe bad industrial environment design, can support rail installation, Port surge protection can be up to 6kv,Working temperature range -40℃~75℃, can satisfy the special demand of industrial automation control.
Unmanaged Industrial PoE Switch 8 Port PM3012FSI Specifications
Hardware Specification
|
Model |
PM3012FSI |
|
Standard |
IEEE 802.3、IEEE 802.3u、IEEE 802.3ab 、IEEE 802.3z、IEEE 802.3x、 |
|
Interface |
8*10/100Mbps RJ45 Port (Auto Negotiation/Auto MDI/MDIX) 2*Gigabit TP/SFP Combo ports |
|
PoE Standard |
IEEE802.3af/at |
|
PoE Port |
1-8 Port |
|
PoE output-port |
Max 32W |
|
Transfer Mode |
Store-and-forward |
|
Switching Capacity |
5.6Gbps |
|
MAC Address Table |
8K, Auto-learning, Auto-aging |
|
jumbo frame |
1632 Byte |
|
Packet buffer |
1M bit |
|
Packet Forward Speed |
4.17 Mpps |
|
Input Power Supply |
DC: 48-57V or (24-48V booster module) optional |
|
Operating Temperature |
-40℃~75℃ |
|
Storage Temperature |
-40 °C ~ 80 °C |
|
Operating Humidity |
10% ~ 90% non-condensing |
|
Storage Humidity |
5% ~ 90% non-condensing |
|
Dimensions(L*W*H) |
165*147*54mm |
|
Fan Quantity |
Fanless |
|
Machine weight |
<2kg</span> |
|
LED Indicator |
PWR（Green）、LNK/ACT（10/100M: Green; Gigabit port: 10/100M: Orange,1000M: Green） |
|
Network media |
10BASE-T: UTP category3,4,5 cable（≤100m） 100BASE-TX: UTP category 5, 5e cable（≤100m） 1000BASE-T: UTP category 5e,5 cable（≤100m） 1000BASE-TX: Turn gigabit SFP optical RJ45 electrical module 1000BASE-LX : Gigabit SFP mode （1310nm，LC，DDM） 1000BASE-ZX: Gigabit SFP single mode （1550nm，LC，DDM） |
|
Surge Protection |
Differential mode ±4KV Common mode ±6KV |
|
EEE |
IEEE 802.3az |
|
MTBF |
>100000 hours |
|
Electrostatic standard |
Contact8KV,air10KV |
Ordering Information
|
Model |
product information |
|
PM3012FSI |
8*10/100Mbps+2GComboIndustrial PoEswitch(Support 802.3 af/at standard) |
PM3012FSI Product Features
- Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD);
- Stand-up output power up to 32 W;
- Automatic detection of PD equipment;
- No fan, full metal high energy roof conducting tank;
- Auto-detect power device; will not burn non-standard PoE device or normal PoE switch；
- Support port power supply prioritization, guarantee the continuous power supply of key nodes；
- Support IEEE802.3 x full-duplex flow control and Backpressure half duplex flow control;
- Panel lights to monitor working state and help fault analysis;
- Perfect security mechanism;
- Operating temperature: -40℃~75℃;
Unipoe Unmanaged Industrial Switch PM3012FSI Package Size
Machine Size (L*W*H): 16*9.25*2.8cm
N.W. (Kg): 1.3
G.W. (Kg): 1.38
MPQ (Pcs): 10
Box Size (L*W*H): 24*19*8.5cm
Carton Size (L*W*H): 45.5*25.5*41cm
CBM per Carton (m3): 0.048
CBM per Carton (m3):
