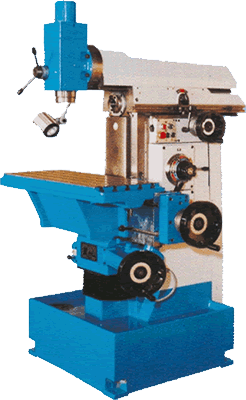

Universal milling machine X8140
Quantité : 1set Prix : USD12000
This machine is a versatile machine of better universality, extensively used for milling flat. Inclined surfaces and slots on metal parts and is suitable for machining tolls, jigs fixtures and moulds as well as machine parts of complicated shapes in instruments and metals manufacturing j-plants and machinery building works.
With the employment of attachment, such as diving head of rotary table, etc. the machine can also be used for cutting gears. Curved planes, cam and other complicate-shaped machine parts. When equipped with digital display system is may be further used for boring coordinated holes
|
|
SPECIFICATIONS：
|
|
|||
|
|
Horizontal Working Table |
Working Table(W*L) |
300 x 750mm |
|
|
|
|
Number of T-slots |
5 |
|
||
|
|
Width of T-slots |
14mm |
|
||
|
|
Distance between slots |
60mm |
|
||
|
|
Vertical Working Table |
Working Table(W*L) |
220 x 800mm |
|
|
|
|
Number of T-slots |
2 |
|
||
|
|
Width of T-slots |
14mm |
|
||
|
|
Distance between slots |
126mm |
|
||
|
|
Max. longitudinal travel by hand/power |
405/395mm |
|
||
|
|
Max. vertical travel by hand/power |
390/380mm |
|
||
|
|
Spindle slide |
Spindle taper bore |
ISO 40, 7: 24 |
|
|
|
|
Max. cross travel by hand/power |
200/200mm |
|
||
|
|
Vertical Milling Head |
Spindle taper bore |
ISO 40, 7: 24 |
|
|
|
|
Max. travel of milling head slide |
550mm |
|
||
|
|
Max. swivel of vertical milling head |
±60° |
|
||
|
|
Main Dimensions Between Parts |
Distance from axis of horizontal spindle to table surface (Min/Max) |
35/415mm |
|
|
|
|
Max. diameter of cutter applied when employing overarm support |
φ150mm |
|
||
|
|
Distance from vertical table to guideway |
175mm |
|
||
|
|
Distance from vertical spindle axis guideway (Max.) |
660mm |
|
||
|
|
Distance spindle end to table surface (Min/Max) |
65/445mm |
|
||
|
|
Weight of machine approx speeds &Feeds |
Number of spindle speeds |
12 |
|
|
|
|
Range of spindle speeds |
40-1600r/min |
|
||
|
|
Longitudinal and vertical feeds of table and cross of spindle slide |
Number |
12 |
|
|
|
|
Range |
8-310mm/min |
|
||
|
|
Rapid feed |
1000mm/min |
|
||
|
|
Rapid traverse Motor |
Power |
2.2kw |
|
|
|
|
Speed |
1430r/min |
|
||
|
|
Main drive motor |
Power |
0.55kw |
|
|
|
|
Speed |
1400r/min |
|
||
|
|
Coolant Pump Motor |
Power |
0.125kw |
|
|
|
|
Speed |
2860r/min |
|
||
|
|
Overall dimensions（L x W x H） |
985 x1195 x 1630mm |
|
||
|
|
Weight of machine approx |
1050kg |
|
||
|
|
STANDARD EQUIPMENT：with main machine supply
|
||||
|
|
Complete tools |
1set |
|||
|
|
Collets chuck |
1 pce |
|||
|
|
cutter arbors Diameter of arbors ：16，22，27，32mm |
1set each |
|||
|
|
Reducing sleeves(Morse taper No.1，2，3) |
1set each |
|||
|
|
spring collets Diameter of collets hole ：2，3，4，5，6，8，10，12mm |
1set each |
|||
|
SPECIAL EQUIPMENT：at extra cost
|
|||||
|
Model F11100 dividing head |
1 set |
||||
|
Model QH125 parallel vice |
1 set |
||||
|
Model Ts250 rotary table |
1 set |
||||
|
Facing and boring head |
1 set |
||||
|
No.22, universal angular table |
1 pc |
||||
|
No.32, Quill milling head |
1 pc |
||||
|
No.66, Chip tray |
1 pc |
||||
|
No.80, change gear quadrant(with dividing head for spiral milling ) |
1 pc |
||||
|
No.81, Automatic boring and milling head |
1 pc |
||||
|
No.82, Small horizontal milling head |
1 pc |
||||
|
No.83, High speed vertical milling head |
1 pc |
||||
|
No.84, Slotting head |
1 pc |
||||
|
No.95, Spring collets(φ1/16”,3/32”,1/8”,5/32”,3/16”,7/32”,1/4”,9/32”,5/16”,11/32”,3/) ”,13/32”, 7/16”,15/32”,1/2” |
1pc-each |
||||
|
No.96, R8 Collets Chuck |
1 pc |
||||
|
No.97, Spring collets and collets chuck(φ4-26mm) |
1pc-each |
||||
|
Upper guard |
1 pc |
||||
|
Splash guard |
1 pc |
||||
|
Milling chuck(φ4-6mm) |
1 set |
||||
|
Antivibrator |
1 set |
||||
Personne à contacter : elliott Lian, 86 10 67888737
