Ultrahigh Type Wooden Movable Partition

Ultrahigh Type Wooden Movable Partition

  • Excellent design proposal.
  • The prompt and competitive price.
  • Strict quality-compliance and punctual delivery.
  • Organize the shipment for you.
  • Timely service and efficient response.
  • Three years warranty.

Gaoyou ultrahigh heavy duty Steel track system is used when the partition height or weights limit exceed that recommended for the normal aluminum system. Maximum height can reach to 17meters with a panel weight up to 1300kg, each carrier has four steel wheels with precision ground radial bearing, Bearings are inserted into a steel tire. The steel tire rim fully captures the bearings. Carriers can be programmed for self-direction and sorting. The track is of formed black painted high strength steel. The track trim cover is clear anodized aluminum, all junction tracks are factory assemble and welded. Minimum dimension from the ceiling to the structure is 350mm.

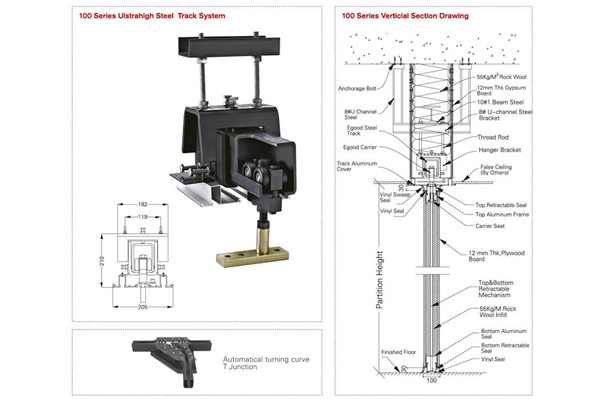

Ultrahigh Iron Track System And Vertical Section Drawing:


ultrahigh type movable partition2
GaoYou ultrahigh type movable wall partition is made of the high-quality anodized aluminum frame with environmentally composite materials. The panels move on a ceiling track with no requirement of floor guides or rails. The aluminum frame thickness is 100mm, width up to 1219mm. Maximum height can reach 17 meters tall.

The movable partitions consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals, its provide excellent acoustic insulation property of from STC-46 to 54 in the laboratory setting. Its high performance per dollar value and the easiest in-field operation makes it very suitable for Hotel, banquet hall, conference room, ballroom, multi-function hall, restaurant, classroom, office, religion, dance studio, shopping arcades and many other places where seek for space divide with good soundproof performance.

There are wide of range face finishes are available: melamine faced MDF or Plywood, fabric, carpet, fabric, artificial, leather, wood veneer, high-pressure laminate, Formica, acoustic panel, whiteboard ect., Panels can also be supplied unfinished for field decoration, Standard frame color is clear anodized aluminum, custom powder coating colors are available.
ultrahigh type movable partition3
GaoYou, one ultrahigh movable partition supplier, works with Architects, designer, developers, contractor and owners in design product selection, decorative finishes, project management and after-sales warranty services as her one-stop solution business service.

Movable Partition Internal Structure Diagram:


ultrahigh type movable partition4

Movable Partition With Arc-shaped Corner


ultrahigh type movable partition5

How To Make The Movable Partition Order?


ultrahigh type movable partition6

Production:

ultrahigh type movable partition8

Track Installation For The Ultrahigh Movable Partition:




ultrahigh type movable partition11

Package And Shipping:

ultrahigh type movable partition12
Please feel free to ask us if you have any questions about this movable partition, we will be glad to help you solve problems. Thanks.
