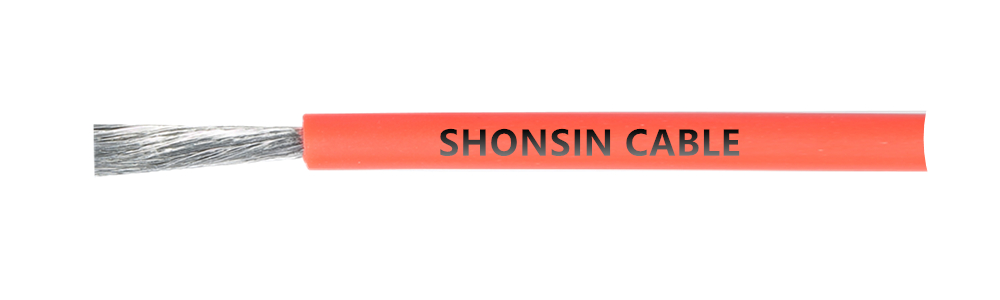

UL3386 XLPE UL CABLE
UL3386 hook up wire is a single conductor that comes with extruded XLPE insulation which is thermoset material.
Features of UL3386 XLPE UL Cable:
Rated Temperature: 105℃
Rated Voltage: 600 Vac
Fire Resistance: UL VW-1 & CSA - FT1
Conductor: 32 AWG - 4/0 AWG, solid or stranded.
Insulation: Extruded XLPE
|
Conductor size |
Minimum average thickness |
Minimum thickness at any point |
|
32-9 AWG |
30 mils |
27 mils |
|
8-7 AWG |
45 mils |
40 mils |
|
6-2 AWG |
60 mils |
54 mils |
|
1-4/0 AWG |
80 mils |
72 mils |
Shielding: Optional
Jacket: Optional. Required when shield is used. Extruded PVC, 30 mils minimum average thickness, 24 mils minimum thickness at any point.
Standard: Appliance Wiring Material UL 758.
RoHS & REACH compliance
Resistant to acids, oils, alkalis, moisture & fungi.
Use: Internal wiring of appliances. Tags may indicate the following: 2500 Volts Peak - For Electronic Use Only.
Specifications of UL3386 XLPE UL Cable:
|
Cable Type |
Conductor |
Insulator |
|||||
|
Size |
Construction |
Cross Section |
Diameter |
Thickness |
Overall Diameter |
||
|
AWG |
No. |
Copper(Φmm) |
(mm²) |
(mm) |
(mm) |
(mm) |
|
|
UL3386 |
32 |
7 |
0.08 |
0.04 |
0.24 |
0.78 |
1.8 |
|
30 |
7 |
0.10 |
0.05 |
0.31 |
0.80 |
1.9 |
|
|
28 |
7 |
0.127 |
0.09 |
0.39 |
0.81 |
2.0 |
|
|
26 |
7 |
0.16 |
0.14 |
0.49 |
0.81 |
2.1 |
|
|
24 |
11 |
0.16 |
0.22 |
0.61 |
0.79 |
2.2 |
|
|
22 |
17 |
0.16 |
0.34 |
0.76 |
0.82 |
2.4 |
|
|
20 |
26 |
0.16 |
0.52 |
0.94 |
0.78 |
2.5 |
|
|
18 |
42 |
0.16 |
0.84 |
1.20 |
0.80 |
2.8 |
|
|
16 |
26 |
0.25 |
1.28 |
1.47 |
0.81 |
3.1 |
|
|
14 |
41 |
0.25 |
2.01 |
1.85 |
0.83 |
3.5 |
|
|
12 |
65 |
0.25 |
3.19 |
2.33 |
0.84 |
4.0 |
|
|
10 |
105 |
0.25 |
5.15 |
2.96 |
0.82 |
4.6 |
|
Shonsin Electronics Co., Ltd is a professional custom cable manufacturers, we provide ul3385, ul3385 wire, bulk hook up wire, pvc cable and etc. Want to know more? Contact us now.
