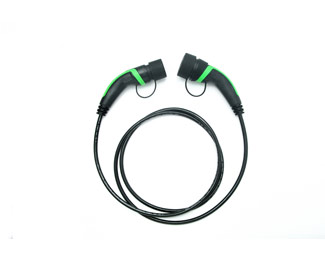

Type2-Type2 EV Charging Cable
The cable conforms to the IEC Standard (EU) of EV Charging, which suits Electric Vehicles manufactured in European Countries. One end with sheath connects to the EV while The other end connects to the Charging Station. The other option is Cable Spiral Type, it saves more space when stocking, nice solution for charging.
Features of Jayuan type 2 to type 1 cable
Matching IEC 62196-2 2010 and SAE J1772 2010.
Ergonomic Design.
Convenient Connector.
Advanced Craft shows a Nice Appearance.
Longer Lifespan and Better Bending thanks to XLPO & TPU Material.
IP55 for Plug.
Specifications of Type2-Type2 EV Charging Cable
|
Electrical |
Environment |
Materials |
Mechanical |
||||
|
Insulation Resistance: |
>1000MΩ (DC500V) |
Operating Temperature: |
-30℃~50℃ |
Shell (Thermoplastic): |
UL94-V Flame Retardent |
Life: |
no-load plug>10000times |
|
Pins Temperature Rise: |
<50K</span> |
Waterproof IP Grade: |
IP66/IP55 |
Pin: |
Copper Alloy, Silver Plated |
External Force: |
1meters Drop and 2tons vehicle run over pressure affordable. |
|
Withstand Voltage: |
2500V |
/ |
/ |
/ |
/ |
Insertion Force: |
<100N</span> |
|
Contact Impedance: |
0.5mΩMax |
/ |
/ |
/ |
/ |
/ |
/ |
As one of the electric car charger manufacturers, we provide custom wire and cable, type 2 portable charger, type 2 to type 2 charging cable, polycrystalline panel and etc. Want to know more? Please contact us.
