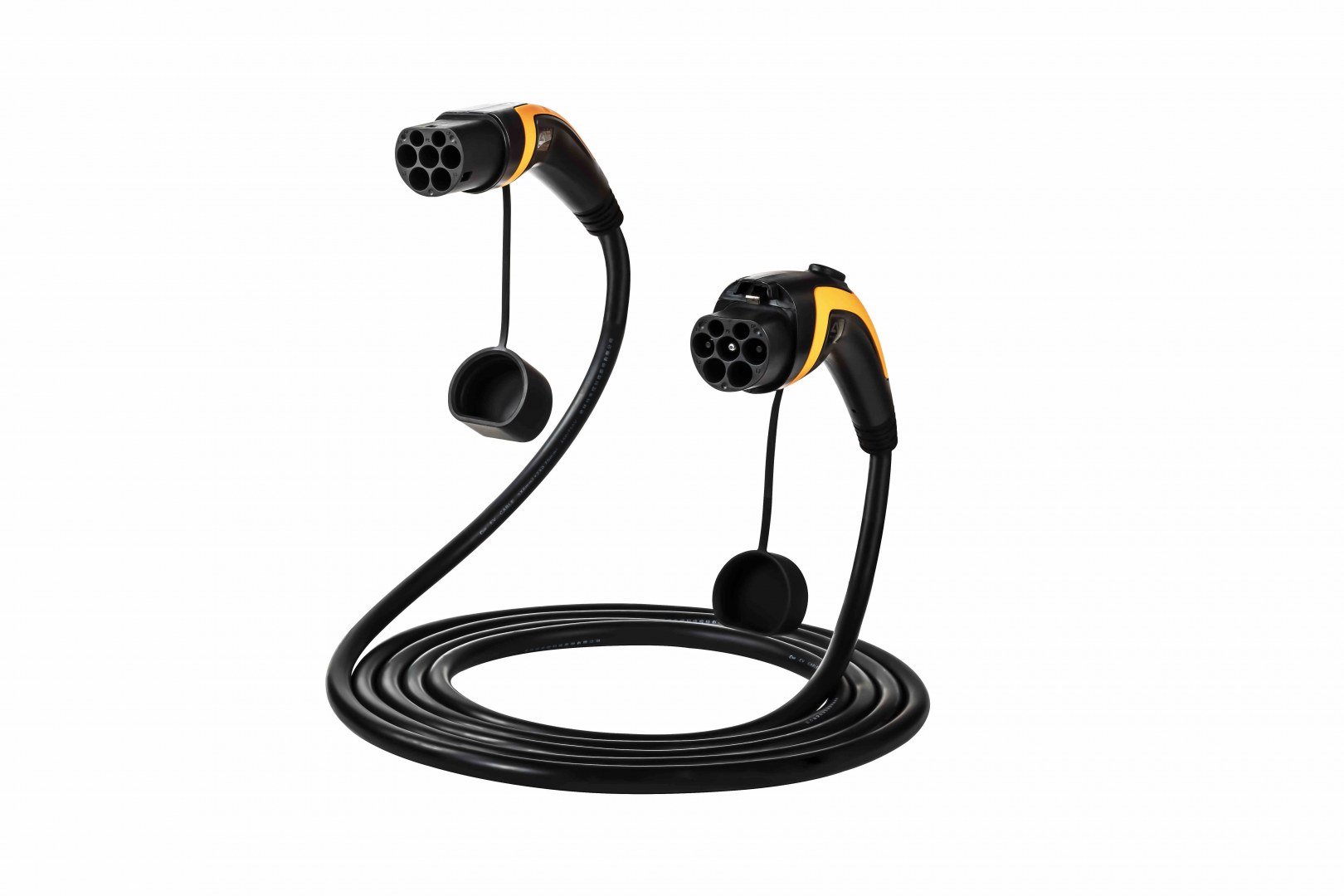

TYPE2-GBT Charging Mode3 Cable
Mechanical properties
Mechanical life: no-load plug>10000times
Impact of external force: can afford 1m drop and 2t vehicle run over pressure.
Electrical Performance
The rated current: 16A、32A
The rated voltage: 250V
Insulation resistance: >1000MΩ(DC500V)
Pins temperature rise: <50K</span>
Withstand voltage: 2000V
Contact impedance: 0.5mΩMax
Applied Materials
Shell Material: thermoplastics, flame retardant grade UL94-V0
Pin: Copper alloy, silver
Environmental performance
Operating temperature: -30C-+50C
TYPE2-GBT Charging Mode3 Cable Features
Conform to the provisions and requirements of GB/T 20234.2-2015 & 62196-2 IEC 2010 SHEET 2-lle.
Product assembly meet GB/T 20234.2-2011 Charging Mode3 connection method B2.
Using riveting pressure process with none screw, have a beautiful appearance.Hand-neld design conform to the ergonomic principle,plug conveniently.
Nice appearance, hand design to prevent accidental direct contact with hands.
Excellent protection performance, protection grade achieved IP55 of plug(working condition)High security.
TYPE2-GBT Charging Mode3 Cable Parameter
|
Product Type |
Rated Current/ voltage |
Cable Specifications |
|
AG-GBAC-CZ16P |
16A/250V |
3X2.5mm2+2x0.75mm2 |
|
AG-GBAC-CZ32P |
32A/250V |
3X6mm2+2x0.75mm2 |
As one of the most reliable ev charger companies, we provide portable ev charger, 3 pin to type 2 cable, type 2 ev charger cable, ev charging solutions and etc. Contact us to know more about us.
