TYPE TSPO-Transparent Stainless Steel Helix and Polyester Fiber Braid Reinforced Silico...

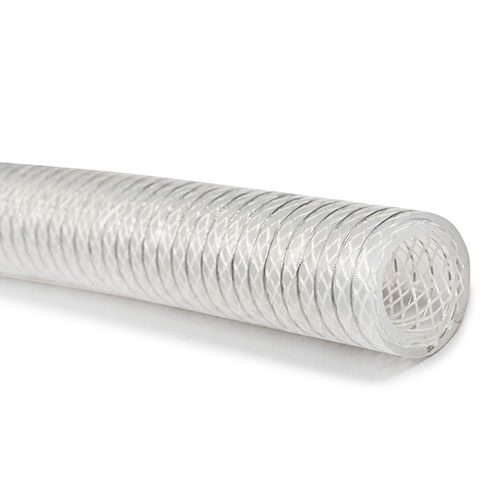

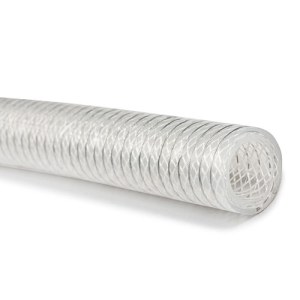

Transparent Stainless Steel Helix and Polyester Fiber Braid Reinforced Silicone Hose
Construction: Type TSPO is manufactured from High purity platinum cured Silicone with single stainless steel helix and polyester fiber reinforcement.
Temp. Range: -60°C and 180°C. (+260°C on request)
Colour: Transparent (Coloured covers available)
Smooth inner and outer surface to resist material adhesion
Silicone hoses suitable for pressure and vacuum.
Suitable for CIP and SIP cleaning
Odourless, Tasteless, Non-Toxic
Certification: FDA, USP,BFR, USDA, ISO 10993
Length: Standard length is 6 or 10 meters.
** PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.
|
Part no. |
ID |
OD |
Bending radius |
Work pressure |
Bursting pressure |
Vacuum |
|
|
in. |
mm |
mm |
mm |
bar |
bar |
bar |
|
|
TSPO005 |
3/16" |
4.8 |
11 |
25 |
18 |
54 |
0.91 |
|
TSPO006 |
1/4" |
6.4 |
13 |
38 |
17 |
51 |
0.91 |
|
TSPO008 |
5/16" |
7.9 |
15 |
45 |
15 |
45 |
0.91 |
|
TSPO010 |
3/8" |
9.5 |
17 |
57 |
14 |
42 |
0.91 |
|
TSPO013 |
1/2" |
12.7 |
22 |
70 |
11 |
33 |
0.91 |
|
TSPO016 |
5/8" |
15.9 |
25 |
80 |
10 |
30 |
0.91 |
|
TSPO019 |
3/4" |
19 |
31 |
95 |
7 |
21 |
0.91 |
|
TSPO022 |
7/8" |
22 |
34.5 |
145 |
6.5 |
19.5 |
0.91 |
|
TSPO025 |
1" |
25.4 |
38 |
160 |
6 |
18 |
0.91 |
|
TSPO032 |
1-1/4" |
32 |
46 |
200 |
5 |
15 |
0.91 |
