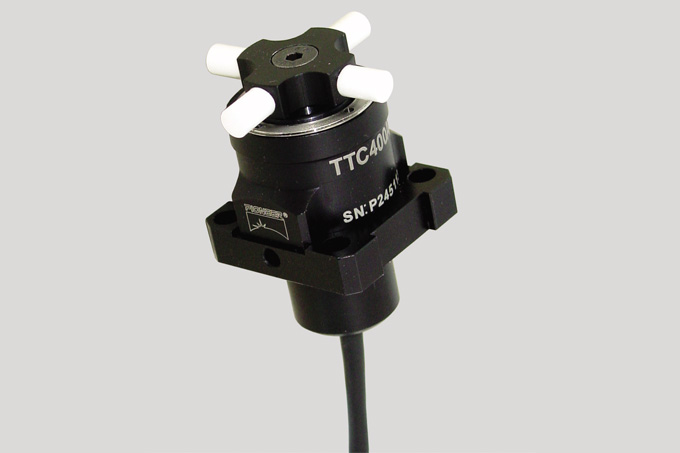

TTC400A Cable Tool Setter Unit

TTC400A cable tool setter unit is a product specially developed by our company for replacing some vulnerable tool setting units that is part of the swing-arm for setting the cutting tool in the CNC lathes. It is suitable for various specifications of CNC lathe, turning machine center and CNC milling -turning center.

TTC400A cnc lathe tool setting is a product specially developed by our company for replacing some vulnerable tool setting units that is part of the swing-arm for setting the cutting tool in the CNC lathes. It is suitable for various specifications of CNC lathe, turning machine center and CNC milling -turning center.

Parameter of TTC400A Cable Tool Setter Unit

TTC400A

Measuring direction

±X, ±Z,±5 mm

Repeatability

≤ 2 μm

Diameter of the four ceramic touching pillar

5.0 mm

Hardness of the touch face

HM8.5

Input voltage

24±10% VDC

Output load current

50 mA

Seal grade

IP68

Application of TTC400A Cable Tool Setter Unit

TTC400A used with a high-precision motorized tool setting arm, which can realize in-sequence tool setting and tool breakage detection without operator intervention.

For tool measuring and broken tool detection on 2-axis and 3-axis CNC lathes.

Replacement of some vulnerable tool setting units.

Technical Characteristics of TTC400A Cable Tool Setter Unit

As shown in the picture, the installing structure and size of the tool setter unit are exactly the same as the replacement;

Tool setter unit transmits tool setting signal through cable;

It is ensured during manufacturing that the position relationship between four pillars of the tool setter unit and mounting base;

One LED indicator light is used to display the tool setter's working state.

Signal model and LED instruction: high electric level output with normal signal state, LED normally on; When any one pillar is triggered, the signal output point is suspended and the LED is off;

Pioneer is a professional probe manufacturer, we provide pioneer probe, cnc height setter, length tool setter, machine tool setter and etc. Want to know more? Please contact us.
