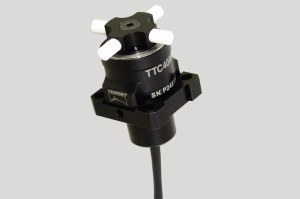

TTC400A Cable Tool Setter Unit
Quantité : 500/month Prix : 400-3600 USD
Harbin Pioneer M&E Technical Development Co, Ltd was founded by Mr. Baichun Sun in 1995. After several years of development, the company gradually focused its main business on developing CNC touch probe and touch probe. its production, and sales.We developed probes, tool setters, and a variety of probe styluses of the three series of products. As the touch probe in the field of CNC machine tool probe in China, Pioneer has always persisted in independent development pioneer machine and tool and worked hard to reach the world advanced level.
TTC400A lathe tool setter unit is a product specially developed by our company for replacing some vulnerable tool setting units that is part of the swing-arm for setting the cutting tool in the CNC lathes. It is suitable for various specifications of CNC lathe, turning machine center and CNC milling -turning center.
Parameter of TTC400A Cable Tool Setter Unit
TTC400A: |
|
Measuring direction |
±X, ±Z,±5 mm |
Repeatability (2σ) |
≤ 2 μm; |
Diameter of the four ceramic touching pillar |
5.0 mm |
Hardness of the touch face |
HM8.5 |
Input voltage |
24±10% VDC |
Output load current |
50 mA |
Seal grade |
IP68 |
Drawing of TTC400A Cable Tool Setter Unit
TTC400A Cable Tool Setter UnitTTC400A Cable Tool Setter Unit
Application of TTC400A Cable Tool Setter Unit
TTC400A used with a high-precision motorized tool setting arm, which can realize in-sequence tool setting and tool breakage detection without operator intervention.
For tool measuring and broken tool detection on 2-axis and 3-axis CNC lathes.
Replacement of some vulnerable tool setting units.
Technical Characteristics of TTC400A Cable Tool Setter Unit
As shown in the picture, the installing structure and size of the tool setter unit are exactly the same as the replacement;
Tool setter unit transmits tool setting signal through cable;
It is ensured during manufacturing that the position relationship between four pillars of the tool setter unit and mounting base;
One LED indicator light is used to display the tool setter's working state.
Signal model and LED instruction: high electric level output with normal signal state, LED normally on; When any one pillar is triggered, the signal output point is suspended and the LED is off;
