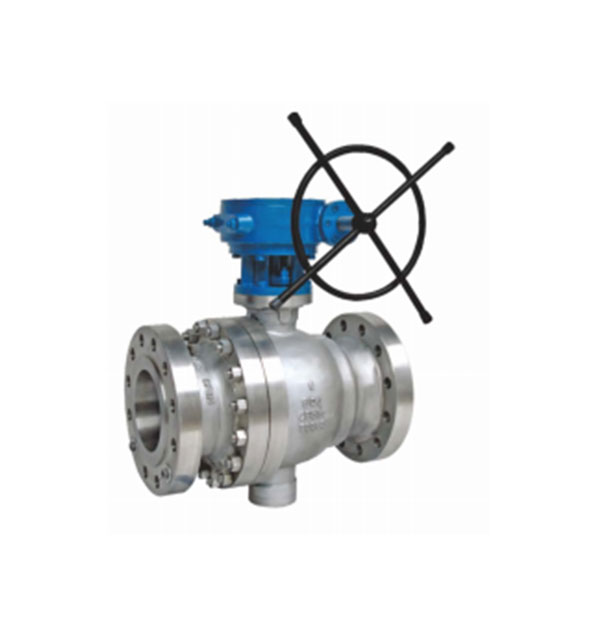

Trunnion Mounted Ball Valve

Prix : 100USD

China Trunnion Mounted Ball Valve

As a trunnion mounted ball valve factory, UTMOST provides high quality trunnion style ball valve with ball valve trunnion service. The rear of the steel ring is equipped with a spring to ensure that the pressure ball valve seat is tightly attached to the ball. Keep it sealed. Both the upper and lower trunnion type ball valve stems are equipped with PTFE bearings to reduce friction and save labor. The bottom of the small shaft is equipped with an adjustment plate to ensure the joint position of the ball and the sealing ring. Full bore diameter: The flow aperture of the trunnion style ball valve is the same as the inner diameter of the pipeline, so that the pipeline can be cleaned.

Trunnion Mounted Ball Valve China Technical Specification

Size: 1/2"~38"

Pressure: Class ANSI #150~2500

Body material: Carbon steel, Stainless steel, Duplex, or others

Standard compliance: API 6D, BS5351, ASME B16.34 or equivalents

End connections: Flanged, R.F, RTJ, Welded

Optional locking device or stem extension

Full port or regular bore; double block and bleed

Now the price of control valve china is low, if you have needs, please leave us a message.

Localisation : No.1 of Hengfa road, Beisu area, Zoucheng, Jining City, Shandong Province,P.R.China, 273500 Shangdong,
Personne à contacter : com UTMOST, (86537) 530 5966
