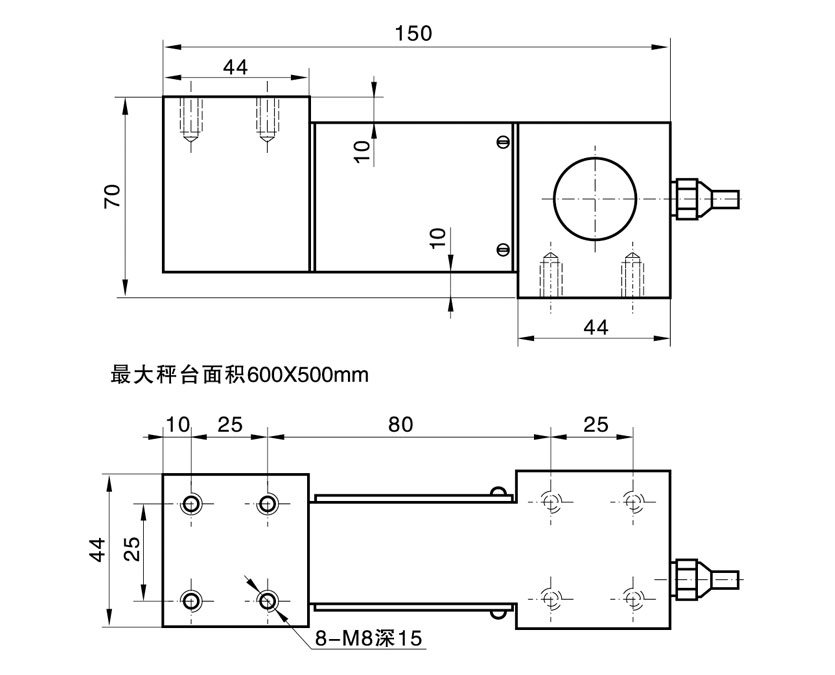

TJH-2C Parallel Beam Load Cell
The product is adjusted at the four corners to ensure that it outputs consistently at all points in the specified load plane. Suitable for packaging scales, platform scales, electronic belt scales, batching scales, etc.
Specifications of TJH-2C Parallel Beam Load Cell
|
Technical Parameter |
|
|
Rated Load |
0.5~10 kN |
|
Comprehensive Precision |
0.02~0.05% FS |
|
Sensitivity |
2.0 mV/V |
|
Creep |
±0.02% FS/30min |
|
Zero Output |
±1% FS |
|
Temperature Effect On Zero |
±0.02% FS/10℃ |
|
Temperature Effect On Output |
±0.02% FS/10℃ |
|
Operating Temperature Range |
-20~+65 ℃ |
|
Input Resistance |
380±10 Ω |
|
Output Resistance |
350± 3 Ω |
|
Insulation Resistance |
＞5000 MΩ |
|
Safe Load Limit |
150% FS |
|
Bridge Voltage |
Reference 10V DC |
|
Material |
Alloy Steel |
|
Load Cell Mode Of Connection |
Input+: Red |
|
Input-: Black |
|
|
Output+: Green |
|
|
Output-: White |
|
Now the price of load cell testing is reasonable, if you have needs, please contact us.
