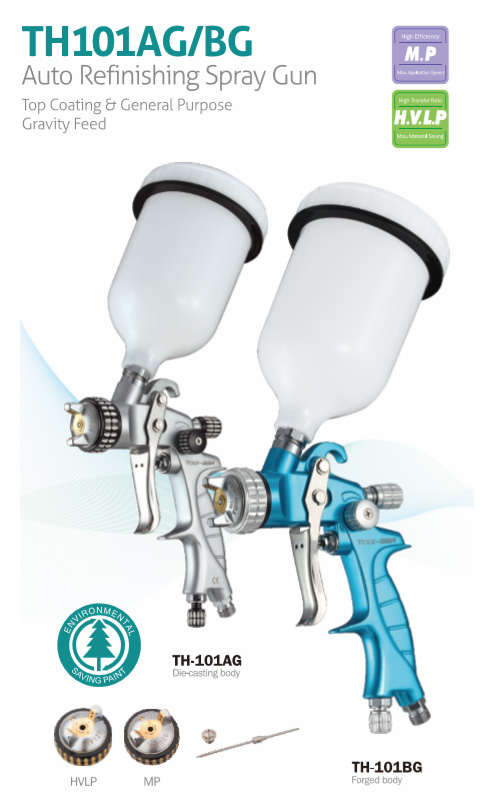

TH101AG BEST HVLP PAINT SPRAYER FOR CARS
HVLP/MP
TH101AG: Die-casting body
TH101BG: Forged body
Top coating & general purpose
Gravity Feed
High-speed rate, Max. material saving
High efficiency
Max. application speed
No o-ring Design
High-grade S.S tip & needle
Unique dual-color ring & knobs
Environmental, paint saving
H.V.L.P: 200-240mm; 7.9-9.4in
M.P: 240-280mm; 9.4-11in
Product overview
ZEGO provides the best hvlp for automotive painting, and the customers will choose their own suitable tools. TH101AG BEST HVLP PAINT SPRAYER FOR CARS has a gravity feed. With no o-ring design and high-speed rate, best hvlp spray gun automotive will save the material and improve efficiency for general purpose. Actually, our best automotive gravity feed spray gun is environmental-friendly and paint-saving.
Models of TH101AG Best HVLP Paint Spray Gun For Cars
tomization Technology |
HVLP |
MP |
|
Model |
TH101AG |
TH101AG |
|
Nozzle Range |
1.0-2.0mm |
1.0-2.0mm |
|
Pattern(1.3mm) |
200-240mm |
240-280mm |
|
7.9-9.4in |
9.4-11in |
||
Recommended Air Inlet Pressure |
2.0bar |
2.5bar |
|
29psi |
36psi |
||
Air Consumption |
400l/min |
300l/min |
|
14cfm |
10.6cfm |
||
Air Inlet |
G/NPT 1/4" |
||
Cup |
600ml |
600ml |
|
plastic |
plastic |
||
Weight(Gun Only) |
498g |
498g |
|
Material |
Body |
Aluminium Die-casted/Forged |
Aluminium Die-casted/Forged |
Air Cap |
Special Selected Brass |
||
Nozzle/Fluid Tip |
High Grade Stainless Steel |
||
Needle |
High Grade Stainless Steel |
Specifications of TH101AG Best HVLP Paint Sprayer For Cars
Model |
Type of feed |
Nozzle |
Spray pattern |
Fluid output |
Air consumption |
Air pressure |
Cup volume |
mm |
mm |
ml/min |
NL/min |
MPa |
ml |
||
TH101AG |
Gravity |
φ1.4 |
200-240 |
140 |
400 |
0.2-0.3 |
600 |
φ1.7 |
240-280 |
250 |
|||||
φ2.0 |
260-300 |
340 |
Parts List of TH101AG Best HVLP Paint Sprayer For Cars
No. |
Description |
Qty |
No. |
Description |
Qty |
No. |
Description |
Qty |
No. |
Description |
Qty |
1 |
Gun body |
1 |
16 |
Air valve spindle |
1 |
31 |
Gasket |
1 |
Accessories |
||
2 |
Needle packing screw washer |
1 |
17 |
Air valve washer |
1 |
32 |
Retainer 4 |
1 |
|
||
3 |
Needle packing spring |
1 |
18 |
Air valve |
1 |
33 |
Spray pattern adjusts the adapter |
1 |
46 |
Multipurpose spanner |
|
4 |
Needle packing washer |
1 |
19 |
Air valve seat |
1 |
34 |
Spray pattern adjust lever |
1 |
47 |
Brush A |
|
5 |
Needle packing gasket |
1 |
20 |
Sealing screw |
1 |
35 |
Washer |
1 |
48 |
Male plug |
|
6 |
Needle packing screw |
1 |
21 |
Retainer 5 |
5 |
36 |
Spray pattern adjust knob |
1 |
|
|
|
7 |
Air baffle |
1 |
22 |
Air adjust adpter |
1 |
37 |
Crosshead screw |
|
|
|
|
8 |
Washer for nozzle seat |
1 |
23 |
Air adjust knob |
1 |
38 |
Needle adjust adapter |
1 |
|
|
|
9 |
Nozzle seat |
1 |
24 |
Gland seal |
1 |
39 |
Needle |
1 |
|
|
|
10 |
Nozzle |
1 |
25 |
G1/4(A) joint |
1 |
40 |
Needle adjust spring |
1 |
|
|
|
11 |
Air cap |
1 |
26 |
Washer |
1 |
41 |
Spring plug |
1 |
|
|
|
12 |
Washer for air cap |
1 |
27 |
Trigger |
1 |
42 |
Needle adjust knob |
1 |
|
|
|
13 |
Locking ring |
1 |
28 |
Trigger pin |
1 |
43 |
Cup adapter |
1 |
|
|
|
14 |
Retainer |
1 |
29 |
Hinge pin |
1 |
44 |
Strainer |
1 |
|
|
|
15 |
Air valve spring |
1 |
30 |
Washer |
1 |
45 |
Cup |
1 |
|
|
As one of spray gun manufacturers, we have types of related products for sale, if you have needs, please contact us.
