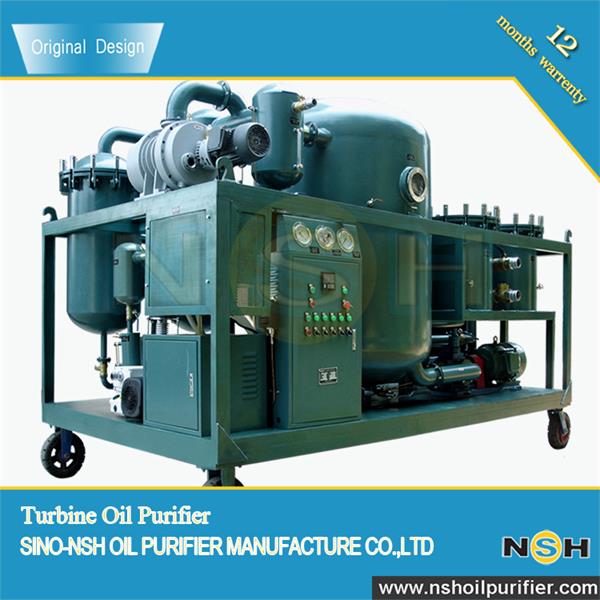

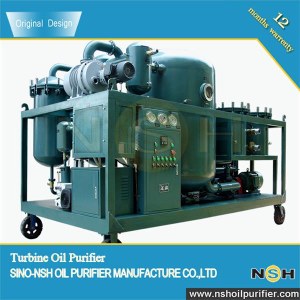

TF Vacuum Turbine Oil Purifier
Quantité : 1 set Prix : USD9790
Description
TF series is particularly suitable for purifying turbine lubricant oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contain large amount of water and others such as vapor, impurities, sludge, dielectric and colloid.
TF series will result in the improvement of the properties of turbine oil or other lubrication and extend the maintenance period of turbines or other equipments which have lubrication system and keep them operate in good condition.
Technical Specification
Item |
Unit |
TF-10 |
TF-20 |
TF-30 |
TF-50 |
TF-100 |
TF-150 |
TF-200 |
|
Flow Rate |
L/H |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
|
Vacuum Range |
Mpa |
-0.06 ~ -0.096 |
|||||||
Working Pressure |
Mpa |
≤ 0.3 |
|||||||
Clearness |
NAS |
≤ 6 |
|||||||
Temperature Range |
°C |
40 ~ 80 |
|||||||
Water Content |
PPM |
≤ 100 |
|||||||
Impurity Size |
μ m |
≤ 5 |
|||||||
Demulsification Number |
Min |
<15</p> |
|||||||
Power Supply |
V |
380V/50Hz(or as needed) |
|||||||
Working Noise |
dB |
≤ 70 |
≤ 75 |
||||||
Heating Power |
Kw |
9 |
18 |
27 |
36 |
72 |
90 |
120 |
|
Total Power |
Kw |
11 |
20 |
30 |
39 |
77 |
98 |
128 |
|
Pipeline Diameter |
mm |
DN20 |
DN20 |
DN20 |
DN25 |
DN32 |
DN40 |
DN50 |
|
Net Weight |
Kg |
320 |
400 |
420 |
450 |
750 |
850 |
950 |
|
Size |
length |
mm |
1280 |
1300 |
1300 |
1350 |
1500 |
1600 |
1700 |
width |
mm |
750 |
900 |
950 |
1000 |
1000 |
1200 |
1400 |
|
high |
mm |
1450 |
1450 |
1500 |
1800 |
1950 |
2000 |
2050 |
Features
1.Eliminate soluble and dissolved water effectively and demulsify rapidly
TF series can not only separate large quantity of water but also remove trace of water from oil. Fitted with specially made water separator,it is capable of making turbid emulsified oil very clear.
2.High effectively purify matters in oil such as impurities, sludge etc.
The automatic backwash filtering system can remove large amount of particulate matters and fine filter system can remove tiny particles.
3.High automation, stability and operation online High automation, small size, light weight, safety and reliability. Installed with infrared liquid level automatic controller, the purifier machine will run automatically and easy handling.
4.Demulsify rapidly, separate large quantity of water and water trace from oil.
5.Backwash filtering system.
