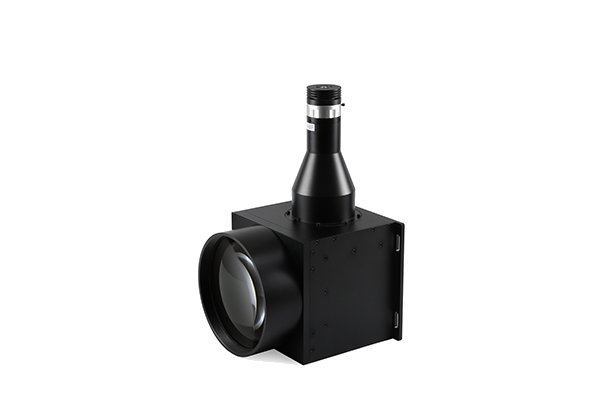

Telecentric Illuminator
Prix : 100USD
Better clarity and WBC, higher telecentricity
Especially suitable for round workpiece measurement、
Specification Of Telecentric Illuminator
|
Model |
Focal Distance (MM) |
Rated Power (W) |
Rated Voltage (V) |
Max Current (MA) |
Output Light Diameter Φ (MM) |
WD (MM) |
WD Tolerance (±mm) |
Suggested Qualified Collimation (°) |
|
XF-PTI020-(C) |
100 |
3W |
3V |
1000mA |
20 |
110 |
50 |
0.52 |
|
XF-PTI037-(C) |
79.3 |
5W |
24V |
208mA |
37 |
56 |
40 |
1.73 |
|
XF-PTI060-(C) |
131.4 |
5W |
24V |
208mA |
60 |
90 |
66 |
1.05 |
|
XF-PTI080-(C) |
160.3 |
5W |
24V |
208mA |
80 |
120 |
80 |
0.86 |
|
XF-PTI080-L90-(C) |
160.3 |
5W |
24V |
208mA |
80 |
120 |
80 |
0.86 |
|
XF-PTI100-L90-(C) |
220.7 |
5W |
24V |
208mA |
100 |
165 |
110 |
0.62 |
|
XF-PTI152-L90-(C) |
418.992 |
5W |
24V |
208mA |
152 |
419 |
209 |
0.33 |
|
XF-PTI195-L90-(C) |
508.382 |
5W |
24V |
208mA |
195 |
508 |
254 |
0.27 |
|
XF-PTI238-L90-(C) |
753.723 |
5W |
24V |
208mA |
238 |
751 |
377 |
0.18 |
Canrill Optics is a professional custom lens manufacturer. We provide Telecentric Lens, Telecentric Illuminator, Non-Telecentric Lens, illumination techniques in machine vision, telecentric light, machine vision illuminator, telecentric illumination and so on. Want to know about choosing a camera lens and microscope lens types? Please contact us.
