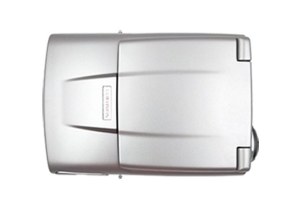

TD90 Corona Camera
Quantité : 1-5000 set Prix : USD 1,000~USD 50,000
Overview of TD90 UV Sensitive Camera
ULIRVISION UVSee TD90 is an innovative NDT - Non-Destructive Testing equipment, which detects, pinpoints and documents flash-arc corona and arcing partial discharge camera. It is a powerful device to detect UV emission in full daylight with high signals both from far away and nearby sources.
TD90 UV sensitive camera is also widely used in overhead transmission lines and high voltage substations. In many different areas, such as transmission line inspection, electrical utilities, HV research institutes laboratories and so on, you can use TD90 UV ray camera to help solve your problem.
Features of Ultraviolet Light Camera
High sensitivity to UV signals
Fully auto focusing function, intelligent operation
Auto focus of UV and visible channels
Light Weight 2.5kg, small size
5.7” foldable color LCD, readable in the sun
Professional report analysis software, more conducive to on-site situation analysis
Technical Specifications of TD90 UV Ray Camera
|
Item |
TD90 |
|
UV – Optical Properties |
|
|
UV sensitivity |
2.2 x 10-18watt/cm² |
|
Minimum discharge detection |
1pC @ 15 meters |
|
Spectral range |
240-280nm |
|
FOV |
5.5° x 4.0° |
|
Focus |
Auto/Manual |
|
Focus range |
2m~∞ |
|
Detector life span |
No degradation |
|
Visible - Optical properties |
|
|
Visible light sensitivity |
0.1 Lux |
|
Focus |
Auto/Manual |
|
Zoom |
12x(Digital)、30x(Optical) |
|
Image Performance |
|
|
Image Display |
5.7” VGA color transflective sunlight readable LCD, folding 640×480 |
|
UV image enhancements |
Digital Filtering denoising |
|
Image frozen |
Freeze the real-time image |
|
Frequency |
50Hz |
|
Modes |
Combined (UV & visible), UV only, Visible only |
|
Video standard |
PAL/NTSC |
|
Image Storage |
|
|
Image format |
JPG |
|
Video format |
AVI |
|
Media download |
Via Card Reader, USB |
|
Audio format |
WAV |
|
Playback |
Video/Pictures/Audio |
|
SD card |
8G SD card, 64G SD card optional |
|
Storage capacity |
8000 images or 4 hr video |
|
Data Process |
|
|
UV/Visible Overlay Accuracy |
<1 milliradian</p> |
|
UV image integral time |
Can set the integral time |
|
Video streaming |
H.264 standard |
|
Functional Characteristics |
|
|
Alarms |
Audio or LED |
|
Location |
GPS |
|
Software upgrade |
Upgrade via SD card |
|
Analysis Software |
Generate report |
|
Output Interface |
|
|
Power interface |
Yes |
|
Video output |
CVBS |
|
Audio output |
Microphone |
|
SD card slot |
Yes |
|
Tripod |
1/4”-20 |
|
Power System |
|
|
External power |
AC: 110V-240V / DC: 50-60Hz/12V 3.8A |
|
Battery type |
Rechargeable Li-Ion |
|
Operation runtime |
2h |
|
Charge |
Online charging or charger |
|
Power consumption |
≤10W |
|
Power saving |
Yes |
|
Environmental Data |
|
|
Operation temp range |
-10 ℃~+50℃ |
|
Storage temp range |
-25 ℃~+60℃ |
|
Humidity |
≤95% (non-condense) |
|
Vibration |
2G(IEC60068-2-6) |
|
Shock |
25G(IEC60068-2-29) |
|
Encapsulation |
IP54(IEC60529) |
|
EMC |
EN61000-6-4&EN61000-6-2/FCC47CFR Part15 class A/EN61000-4-8.L5 |
|
Physical Characteristics |
|
|
Size |
238mm×165mm×91mm |
|
Weight |
≤2.5kg |
|
Packing |
|
|
Standard |
Corona Camera UVSee TD90, AC power adapter, 2pcs Li-ion battery, charger, SD card, SD card reader, video cable, CDROM ( UVSee USB flash drive and Manual), Warranty card, Strap, transport case, USB Cable |
|
Option |
Tripod |
|
Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us. |
|
Applications of TD90 UV Ray Camera
Transmission line inspection
Electrical utilities inspection
HV substations
HV research institutes
HV electrical component inspection
More kinds of thermal machine vision camera, please visit our website.
Zhejiang ULIRVISION Technology Co., Ltd.(ULIRVISION) focuses on infrared thermal imaging, ultraviolet imaging, gas imaging camera, laser clearing instruments, intelligent inspection robot technology innovation and industrialization.
