TC300PTZ/TC700PTZ Dual-Spectral Security Monitor System

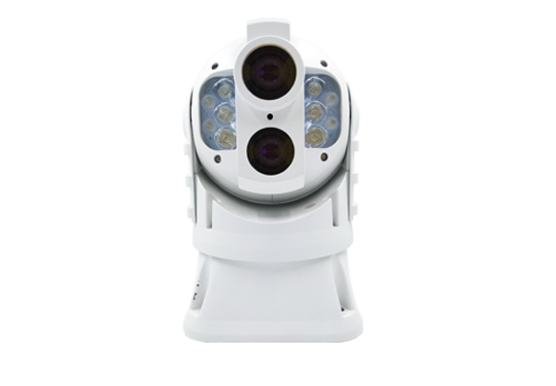

Overview of Security Monitor Camera TC300PTZ/TC700PTZ
TC300PTZ|TC700PTZ combine thermal and visible-light imaging together. This device provides video and control over both IP and analog networks. Professional ship-mounted design and anti-shocking devices, they can be used in ships and vehicles with to provide sharper thermal images. Even the target is far away, device can also help you see it clearly.
Features of Security Monitor Camera TC300PTZ/TC700PTZ
Especially designed for vehicle and ship
50Hz forming images real time, 3s quickly start-up
IVE technology
Anti-shock, anti-corruption, IP67, robust and reliable
Compact structure and integrated design
Technical Specifications of Security Monitor Camera TC300PTZ/TC700PTZ
Item |
TC300PTZ |
TC700PTZ |
|||||
Detector Data |
|||||||
Type |
Uncooled FPA |
||||||
Material |
aSi |
||||||
IR resolution |
384×288 |
640×480 |
|||||
Pixel pitch |
17μm |
||||||
Spectral range |
8~14μm |
||||||
Frequency |
50Hz |
||||||
NETD/Sensitivity |
≤70mK |
≤60mK |
|||||
Lens Data |
|||||||
Type |
Athermal |
||||||
FOV/Focal distance |
19.4°×17.4° /19mm |
15°×11° /25mm |
10°×8° /35mm |
31°×24° /19mm |
25°×18° /25mm |
17.6°×13.2° /35mm |
|
Recognition distance(Vehicle) |
500m |
710m |
950m |
500m |
710m |
950m |
|
Recognition distance(Human) |
160m |
220m |
320m |
160m |
220m |
320m |
|
F |
F 1.0 |
||||||
Image Performance |
|||||||
Correction |
Auto correction |
||||||
Image enhancement |
IVE image enhancement algorithm |
||||||
Frequency |
50Hz |
||||||
Zoom |
2X、4X |
||||||
Polarity/LUT mode |
Black hot /white hot |
||||||
Startup time |
3s |
||||||
Contrast/Brightness |
Auto/Manual |
||||||
CCD Video Camera |
|||||||
Resolution |
1920×1080 |
||||||
Sensor type |
1/2.8” Progressive Scan Cmos |
||||||
Focal distance |
4.7-94mm |
||||||
HFOV |
61.4-2.9°(Wide-Narrow) |
||||||
Zoom |
20X optical, 12X digital |
||||||
Minimum illumination |
0.01Lux |
||||||
Day&Night |
ICR cut filter with auto switch |
||||||
F |
F1.6-F4.4 |
||||||
Pan & Tilt |
|||||||
Horizontal range |
0°~360° |
||||||
Horizontal speed |
Keyboard 100°/S, Manual 0.5°~80°/S |
||||||
Vertical range |
-15°~+90° |
||||||
Vertical speed |
Keyboard 100°/S, Manual 0.5°~80°/S |
||||||
Automatic flip function |
180° automatic flipping with continuous monitoring in the vertical direction |
||||||
Presets |
256 presets, accuracy<0.05° |
||||||
Cruise scan |
6 strips, each can set 16 presets, preset time adjustable |
||||||
Pan & Tilt data |
The pan & tilt's horizontal and pitch angle data can be obtained through instructions,and can be queried through the network or through RS485. |
||||||
Mobile phone monitoring |
Mobile phone monitoring available |
||||||
Interface |
|||||||
Video output |
RJ45, PAL |
||||||
Network protocol |
Support ONVIF/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP |
||||||
Control |
RS485 |
||||||
Communication protocol |
Support PELCO-D/P |
||||||
Baud rate |
2400/4800/9600 bps automatic identification |
||||||
Power System |
|||||||
Working voltage |
DC: +12V~+24V |
||||||
Power consumption |
<50W(include heating)</p> |
||||||
Environment Parameters |
|||||||
Operating temperature range |
-40℃~+65℃,humidity<90%</p> |
||||||
Storage temperature range |
-40℃~+70℃ |
||||||
Encapsulation |
IP67,TVS 3000V lightning protection, surge protection, |
||||||
Vibration protection |
Horizontal: 9G; Vertical: 15G |
||||||
Wind protection |
180km/h |
||||||
Window defrosting |
Standard |
||||||
Physical Data |
|
||||||
Size |
Φ190mm×300mm |
||||||
Weight |
≤6kg |
||||||
Packing |
|||||||
Standard |
Dual-Spectral Security Monitor System, User manual, Warranty card, Packing box |
||||||
Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us. |
Applications of Security Monitor Camera TC300PTZ/TC700PTZ
Surveillance monitoring
Vehicle and shipborne monitoring
