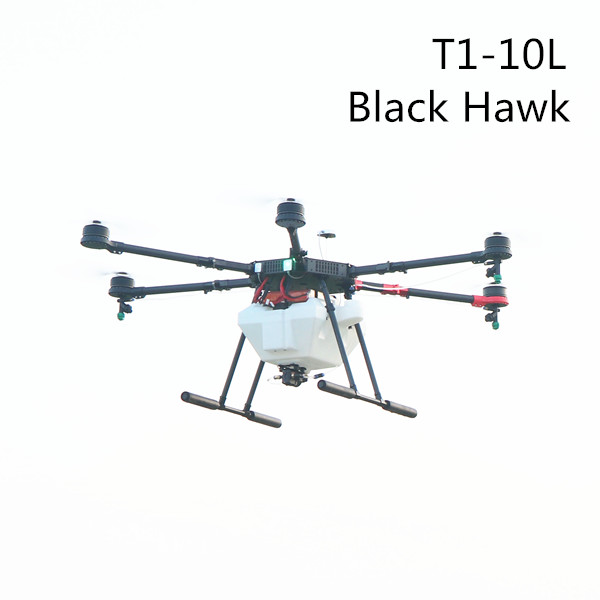

T1-10L Black Hawk Drone UAV

Quantité : 1000 pcs   Prix : USD80-USD230

The T1-10L Black Hawk UAV is specially designed for agricultural spraying. It integrates advanced deep customized flight controller, efficient spraying system, portable folding body, and simple professional remote control, providing users with high efficiency, safety, and convenient plant protection.

Agriculture Hawk DroneT1-10L

T1 hawk quadcopter drone with camera, specially designed for agricultural spraying, integrated advanced depth customization flight controller, efficient spray system, portable folding fuselage and simple professional remote control to provide users with efficient, safe and convenient plant protection service.

Foldable Structure of T1-10L Black Hawk Drone UAV

Drone black hawk is easy fold-up design is convenient for delivery, assembling and transportation, without weakening the original structural strength. The fold-up design can decrease 80% of the using space. We have a lot of different frames for your options. And we can also provide customize service to design new frames. Its motor arms fold inward, making the aircraft compact and easy to transport in the trunk of a car. Able to withstand harsh conditions, the T1 series drone's airframe is made of light, yet durable high-strength carbon fiber.

High efficient spraying system of Hawk Quadcopter Drone

T1 drone black hawk spraying system of the agriculture quadcopter equips a 10L capacity of wave-proof tank, efficient brushless pump, two quick-release sprays and four nozzles. Based on the actual tests, spray width is 4m and operating efficiency is 1.6L/min. The wind-resistant nozzle can decrease pesticides float in the air and economize spraying operations. You can set the spraying range, independent planning the path of changing working lines, also implements the constant situation of height, speed and flow spraying. The function of intelligent spraying flow can be controlled which is associated with the flight speed: the faster the speed, the greater the flow; Speed is lower than 0.5 m/s, pump will shut off independently. It not only ensures the uniformity of spray, but also save agrochemicals.

Regional-planning mode of blackhawk pocket drone

Choose between three flight modes: GPS mode, AB point mode, Manual mode and Auto Operation mode, according to terrain and the specific requirements of each mission. In AB point mode, the flight can be easily planned with the press of a few buttons, without the need for mapping knowledge or other software, making the T1 series drone not only the most efficient but also the easiest to use spraying solution. In GPS Mode, the user can control the drone flying in parallel, forward and backward. It automatically sprays pesticides, which is suitable for operation in the irregular areas. Under Manual mode, the pilot freely navigates the aircraft.

User can select the operation area on APP, and set operation distance, flight speed, altitude and other information. T1 will automatically fly back and forth according to the specified distance and traverse the entire area to complete the work, and the land operation is more convenient.

Break Point Continue To Spray

When detect the following signals such like the secondary battery alarm, low dose alarm, losing ground control signal, one key to return, T1 will automatically shut off the water pump, and make the current point as the continued point to spray. By the function of 'one key to return', UAV can fly to the continued point to restart operation, which ensures the continuous operation of plant protection.

Dose Monitor

When the dosage is lower than the warning value, the led indicator will flash. It will shut off the pump and record this point as the continued spraying point.

Black Box

T1-10L Black Hawk Drone UAV provides a black box function, which can record the flight data completely. T1 data recording module can support 100,000 times cycle read and write. The maximum cumulative 32-hour flight data can be recorded.

Aircraft Frame

Dimension

1436*1436*550 mmarm unfolded, without propellers

710*820*550 mmarm folded, without propellers

Diagonal Wheelbase

1300 mm

Flight Parameters

Total Weight

10.5 kgwithout battery 23.5 kgwith battery, Full Loaded

Standard Take-off Weight

23.5 kg

Max Take-off Weight

25 kg

Hovering Time

10 min 23.5kg take-off weight*

25 min 13.5kg take-off weight *

Max Operating Speed

8 m/s *

Max Flying Speed

10 m/s *

Recommended Operating Temperature

-10℃~40℃

Spray System

Liquid Tank Volume

10 L

Number of Nozzle

4

Spraying Span

3.5-4m

Theoretical Operating Efficiency

200,000/day (8hs, 6 sets of batteries)

Max Spraying Speed

1.6L / min

Ground Controller

Max Transmission Range

1000 m (Unobstructed, Free of Interference)**

*The Flight parameters are for reference only. Different natural conditions may affect the actual flight situation.

*The Transmission Range may be influenced by varied conditions. Choose open area without high buildings as the flight area.

Established in 2002, Shenzhen TitanFlying Technology Co., Ltd (TTF) is located in Shenzhen University Town, known as the Silicon Valley of China. TTF has more than 20 years' experience on mechanical processing.

Localisation : NO.15 Chaoyang road, Yanluo street, Songgang town, Baoan District, Shenzhen , 518055 Shenzhen,
Personne à contacter : flying titan, +75 5 21 53 90 34
