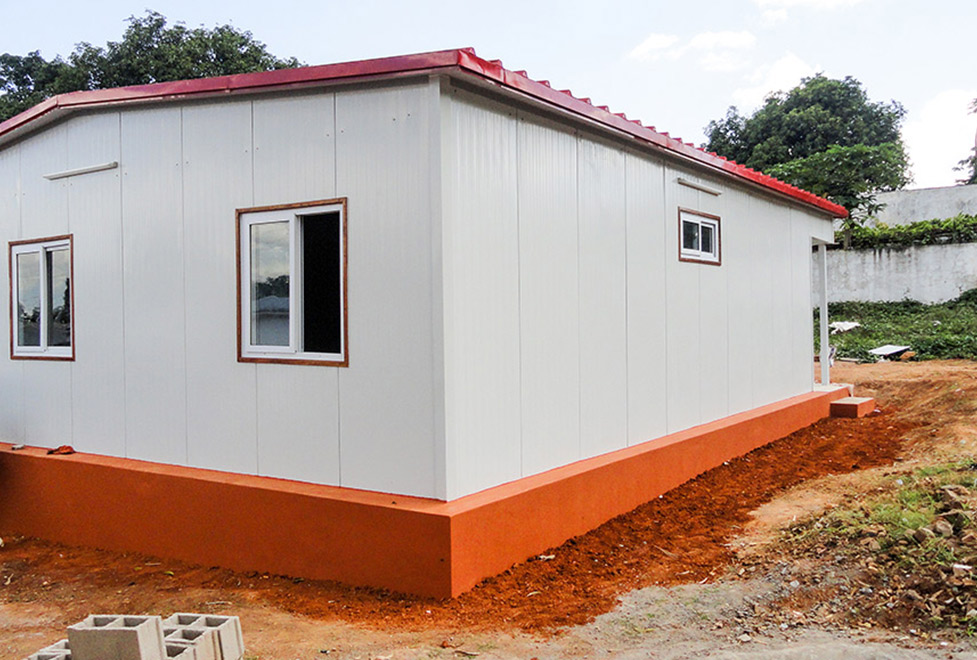

T Type Steel Prefab House
T- house is a kind of steel structure prefabricated house launched in China in the early days. It has a wide range of applications and is mainly used for temporary construction such as accommodation, office, and public buildings. It has a short processing cycle, strong wind resistance, and corrosion resistance. Climatic conditions. Its transportation is more economical, and the transportation cost can be saved by 25% compared with general frame products.
Parameters of T Type Prefabricated Metal Houses
Products Parameters
No. |
Sort |
Name |
Specification |
1 |
Product Type |
Degree of Standardization |
custom-made product, designed and manufactured according to clients' requirement |
2 |
Size |
Length (m): |
No limited, increase expansion joint when length more than 200m. |
3 |
Width(m): |
single span should be less than 12m, an arbitrary width could make by union spans |
|
4 |
Heigth(m): |
single floor≤5m, two or three floors, average height ≤4m |
|
5 |
Roof slope: |
slope is 1: 10~1: 5 |
|
6 |
Floors: |
less than 3 floors |
|
7 |
Standard equipment |
Ground channel |
Galvanized steel panel compression, thickness is 0.8mm |
8 |
Post |
Inside post is steel square pipe, the material is Q235, components surface make antirust process, and decorate with color steel compression parts. |
|
9 |
Roof beam |
roof truss consists of thin sharp steel by welding, component surface make the antirust process |
|
10 |
Purlin |
purlin is Ctype steel, the material is Q235, components' surface makes an antirust process. |
|
11 |
Wall beam |
wall beam is Ctype steel or square pipe, the material is Q235, component surface make the antirust process |
|
12 |
Floor |
made of floor master beam, secondary beam, and floor surface plate(plywood) |
|
13 |
wallboard |
50~150mm thickness double surface color steel sandwich panel, white color |
|
14 |
roof board |
50~150mm thickness double surface color steel corrugated sandwich panel, blue or red color |
|
15 |
door |
color steel sandwich panel door,size: 750mm*2000mm; |
|
16 |
window |
PVC sliding window, with steel screen. |
|
17 |
Options |
Ceiling |
mineral wool acoustic panel, aluminum buckle panel, PVC ceiling |
18 |
Elevation floor |
Design based on local weather conditions. |
|
19 |
Canopy |
color steel sheet or color steel sandwich panel canopy |
|
20 |
door |
compound wooden door, security door, aluminum alloy door |
|
21 |
Electrical accessories |
Supply plan, design, and construction according to relevant national norms(220V,50Hz, with lamp, switches, and multi-function sockets.) |
|
22 |
Water plumbing accessories |
Supply plan, design, and construction according to relevant national norms |
|
23 |
Sanitary ware |
Supply according to customer needs |
|
24 |
Furniture and electric appliance |
Supply according to customer needs |
|
25 |
Design technical data |
Roof dead load |
0.3KN/sqm |
26 |
Roof live load |
0.5KN/sqm |
|
27 |
Floor dead load |
0.5KN/sqm |
|
28 |
Floor live load |
2KN/sqm |
|
29 |
Wind load |
12degree,120km/h(strengthen the steel frame when the wind is bigger than this data) |
|
30 |
Earthquake resistant intensity |
8 degree |
|
31 |
Used for temperature |
Celsius: from -25 to+50 (change the design when the temperature is lower than Celsius -25) |
|
32 |
Installation |
Installation tools |
electric drill, electric hammer,spanner,screwdriver,pulling rivet etc, house installation need electric power. |
33 |
Installation efficiency |
Four skilled labor one day can erect 40m2's house body |
|
34 |
Transport |
container |
each 40ft container could load 130~150Sqm house body material |
No. Sort Name Specification
1 Product Type Degree of Standardization custom-made product, designed and manufactured according to clients' requirement
2 Size Length (m): No limited, increase expansion joint when length more than 200m.
3 Width(m): single span should be less than 12m, an arbitrary width could make by union spans
4 Heigth(m): single floor≤5m, two or three floors, average height ≤4m
5 Roof slope: slope is 1: 10~1: 5
6 Floors: less than 3 floors
7 Standard equipment Ground channel Galvanized steel panel compression, thickness is 0.8mm
8 Post Inside post is steel square pipe, the material is Q235, components surface make antirust process, and decorate with color steel compression parts.
9 Roof beam roof truss consists of thin sharp steel by welding, component surface make the antirust process
10 Purlin purlin is Ctype steel, the material is Q235, components' surface makes an antirust process.
11 Wall beam wall beam is Ctype steel or square pipe, the material is Q235, component surface make the antirust process
12 Floor made of floor master beam, secondary beam, and floor surface plate(plywood)
13 wallboard 50~150mm thickness double surface color steel sandwich panel, white color
14 roof board 50~150mm thickness double surface color steel corrugated sandwich panel, blue or red color
15 door color steel sandwich panel door,size: 750mm*2000mm;
16 window PVC sliding window, with steel screen.
17 Options Ceiling mineral wool acoustic panel, aluminum buckle panel, PVC ceiling
18 Elevation floor Design based on local weather conditions.
19 Canopy color steel sheet or color steel sandwich panel canopy
20 door compound wooden door, security door, aluminum alloy door
21 Electrical accessories Supply plan, design, and construction according to relevant national norms(220V,50Hz, with lamp, switches, and multi-function sockets.)
22 Water plumbing accessories Supply plan, design, and construction according to relevant national norms
23 Sanitary ware Supply according to customer needs
24 Furniture and electric appliance Supply according to customer needs
25 Design technical data Roof dead load 0.3KN/sqm
26 Roof live load 0.5KN/sqm
27 Floor dead load 0.5KN/sqm
28 Floor live load 2KN/sqm
29 Wind load 12degree,120km/h(strengthen the steel frame when the wind is bigger than this data)
30 Earthquake resistant intensity 8 degree
31 Used for temperature Celsius: from -25 to+50 (change the design when the temperature is lower than Celsius -25)
32 Installation Installation tools electric drill, electric hammer,spanner,screwdriver,pulling rivet etc, house installation need electric power.
33 Installation efficiency Four skilled labor one day can erect 40m2's house body
34 Transport container each 40ft container could load 130~150Sqm house body material
If you want to know more kinds of prefabricated metal sheds, please contact us.
Zhongtai Company is a China steel frame structure manufacturer. Our products are mainly temporary construction houses, supplemented by other steel frame house construction products, which fully meet your needs in temporary accommodation, mobile cabin hospital, workshops, warehouses, agricultural greenhouses, livestock Housing, office housing, accommodation building , mobile bathroom, special equipment housing and other needs.
