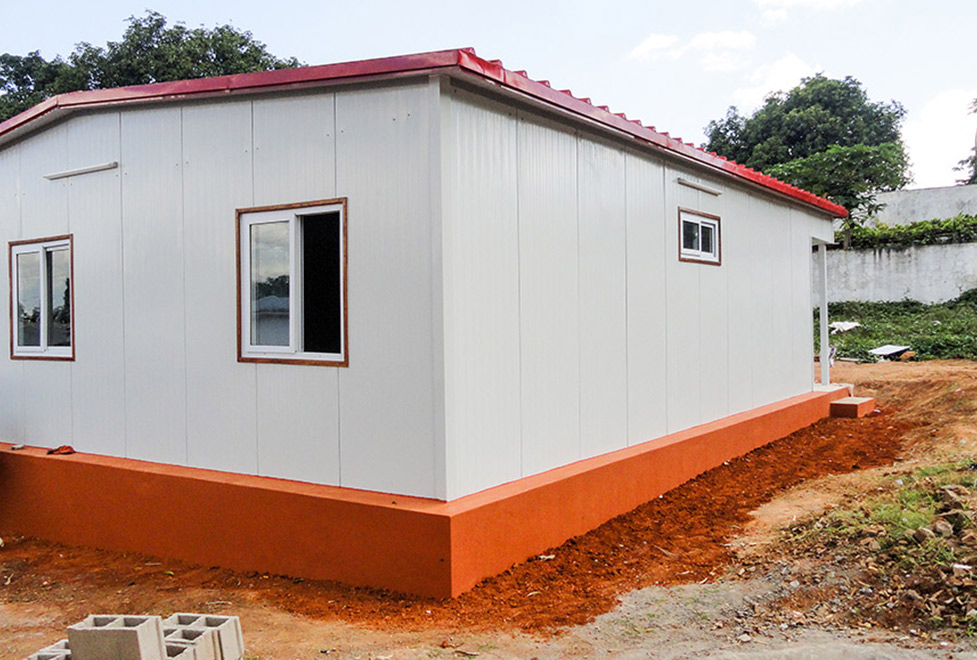

T Type Steel Prefab House

T- house is a kind of steel prefabricated house launched in China in the early days. It has a wide range of applications and is mainly used for temporary construction such as accommodation, office, and public buildings. It has a short processing cycle, strong wind resistance, and corrosion resistance. Climatic conditions. Its transportation is more economical, and the transportation cost can be saved by 25% compared with general frame products.

Parameters of T Type Prefabricated Metal Houses

Products Parameters

No. Sort Name Specification

1 Product Type Degree of Standardization custom-made product, designed and manufactured according to clients' requirement

2 Size Length (m): No limited, increase expansion joint when length more than 200m.

3 Width(m): single span should be less than 12m, an arbitrary width could make by union spans

4 Heigth(m): single floor≤5m, two or three floors, average height ≤4m

5 Roof slope: slope is 1: 10~1: 5

6 Floors: less than 3 floors

7 Standard equipment Ground channel Galvanized steel panel compression, thickness is 0.8mm

8 Post Inside post is steel square pipe, the material is Q235, components surface make antirust process, and decorate with color steel compression parts.

9 Roof beam roof truss consists of thin sharp steel by welding, component surface make the antirust process

10 Purlin purlin is Ctype steel, the material is Q235, components' surface makes an antirust process.

11 Wall beam wall beam is Ctype steel or square pipe, the material is Q235, component surface make the antirust process

12 Floor made of floor master beam, secondary beam, and floor surface plate(plywood)

13 wallboard 50~150mm thickness double surface color steel sandwich panel, white color

14 roof board 50~150mm thickness double surface color steel corrugated sandwich panel, blue or red color

15 door color steel sandwich panel door,size: 750mm*2000mm;

16 window PVC sliding window, with steel screen.

17 Options Ceiling mineral wool acoustic panel, aluminum buckle panel, PVC ceiling

18 Elevation floor Design based on local weather conditions.

19 Canopy color steel sheet or color steel sandwich panel canopy

20 door compound wooden door, security door, aluminum alloy door

21 Electrical accessories Supply plan, design, and construction according to relevant national norms(220V,50Hz, with lamp, switches, and multi-function sockets.)

22 Water plumbing accessories Supply plan, design, and construction according to relevant national norms

23 Sanitary ware Supply according to customer needs

24 Furniture and electric appliance Supply according to customer needs

25 Design technical data Roof dead load 0.3KN/sqm

26 Roof live load 0.5KN/sqm

27 Floor dead load 0.5KN/sqm

28 Floor live load 2KN/sqm

29 Wind load 12degree,120km/h(strengthen the steel frame when the wind is bigger than this data)

30 Earthquake resistant intensity 8 degree

31 Used for temperature Celsius: from -25 to+50 (change the design when the temperature is lower than Celsius -25)

32 Installation Installation tools electric drill, electric hammer,spanner,screwdriver,pulling rivet etc, house installation need electric power.

33 Installation efficiency Four skilled labor one day can erect 40m2's house body

34 Transport container each 40ft container could load 130~150Sqm house body material

If you want to know more kinds of prefabricated steel frame, please contact us.

Zhongtai Company is a China steel frame structure manufacturer. Our products are mainly temporary construction houses, supplemented by other steel frame house construction products, which fully meet your needs in temporary accommodation, mobile cabin hospital, workshops, warehouses, agricultural greenhouses, livestock Housing, office housing, accommodation building , mobile bathroom, special equipment housing and other needs.
