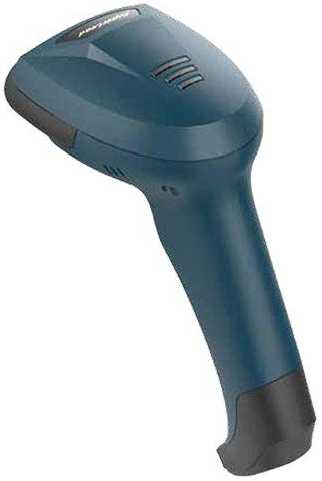

Superlead Good Performance 1D/2D Wireless Scanner 2620BT

uperLead

2620-BT&Dongle

Technical Specification

Physical Characteristics

Dimensions:

180mm x 95mm x 70mm

Weight:

116g

V oltageCurrent:

5 VDC +/-10% @ 500 mA

Performance Characteristics

Image (Pixels):

640 pixels (H )x480 pixels (V)

Light Source:

Aiming: 617 nm LED; illumination： 6500K LED

Field of View：

40°(H)x32°(V)

Roll / Pitch / Yaw:

360°, ±65°, ±60°

H＜：Battery volume

4.2v/2500mAh

Charging time

5-6 h

Working time

1秒扫描一次，可连续工作12小时。

Wireless technolngy

Bluetooth 5.0

Operation distance

250 meters (open space)

Print Contrast:

25% minimum reflective difference

Interfaces Supported:

USB, OTA

Motion Tolerances

up to 25 in. (63.5 cm) per second

Symbology Decode Capability

1-D:

UPC, EAN, Codel28, Code 39, Code 93, Codell, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.

2-D:

PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.

User Environment

Operating Temperature:

0°C to 50°C

Storage Temperature:

-40°C to 70°C

Humidity:

0% to 95% relative humidity,non-condensing

Shock Specifications:

Designed to withstand 1.5m(5') drops

Ambient Light Immunity:

100.000 Lux.

Decode Ranges

5 mil (Code 39)

30mm-90mm

13 mil (100% Upca)

40mm-170mm

ID Minimal Resolution

4mil

Performance may be impacted by bar code quality and environmental conditions
