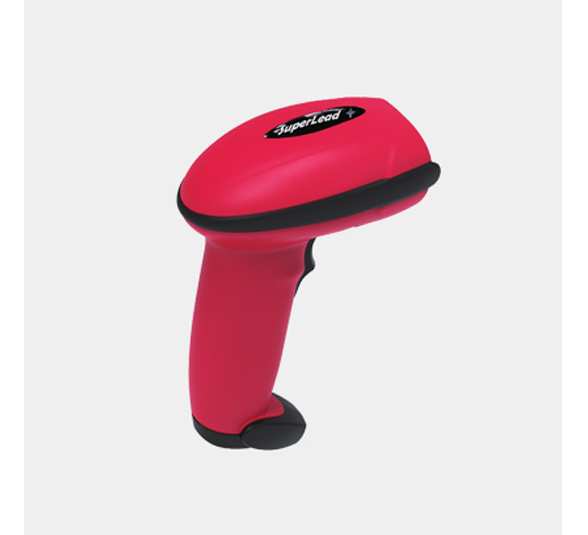

Superlead 8160 IP54 Industrial Level Megapixels DPM 2D Barcode Scanner
Quantité : 100k Month Prix : 10-80
Large scanning window of the dpm barcode scanner
Self-inductive influence reading of the dpm scanner
Support sports reading, sensitive scanning
Support barcode reading without backlight
3 working modes ( normal mode, mobile phone model, fast-moving mode )
Multi-language barcode information direct transmission
Details of Superlead 8160 IP54 Industrial Level Megapixels DPM 2d Barcode Scanner
SuperLead
8110HD8120DPM
Area-Imaging Scanner
World Class 2D Code Scanning
P54 Protection Withstand 2meters Drop
Manual or automatic triggering
Multiple language barcode message transfer
Available with a stand option
Reads bar code reliably off cell phone screens
Ruggedized design, withstand 6ft. drop to concrete
Integrated advanced illumination system
High speed, omnidirectional reading of 1D, 2D, Postal bar codesand OCR
Built in patented lighting system
Automatic interface detection without setting
Manual mode & self sensing mode optional
Industrial megapixel
High speed reading 3mil small code
Easily handle all radium engraved codes with highly reflective materials, and two-dimensional barcodes on metal and plastic materials
Application scenarios
outdoor operation, warehousing and logistics, assembly line, complete automobile and parts, 3C electronic manufacturing, battery manufacturing, PCBA manufacturing, etc.
Specification of Superlead 8160 IP54 Industrial Level Megapixels DPM 2D Barcode Scanner
|
Suzhou SuperMax Smart System Co., Ltd. |
8160 |
|
|
Physical Characteristics |
||
|
Dimensions |
102mm x 71mm x 168mm |
|
|
Weight |
170g |
|
|
Shell Material |
PC+ABS |
|
|
Performance Characteristics |
||
|
Sensor Pixels |
1280p (H) x 1080p (V) |
|
|
Light Source Illumination |
illumination: 4500K LED, Aiming: 617 nm LED |
|
|
Field of View Angle |
38.5°(H) x 32.5°(H) |
|
|
Move Tolerance |
5 m/s |
|
|
Decoding Performance |
UPC(13 mil): 0mm - 280mm |
|
|
Code 39 (3mil): 0mm - 100mm |
||
|
QR Code (20mil): 0mm - 280mm |
||
|
Resolution: 3mil |
||
|
Symbology Decode Capability |
2-D |
QR, DataMatrix, PDF417, Aztec |
|
1-D |
Code128, Code93, Code39, Interleaved 2 of 5, Industrial 2 of 5, IAN/EAN/UPC |
|
|
User Environment |
||
|
Working Temperature |
0℃~50℃ |
|
|
Storage Temperature |
-40℃~70℃ |
|
|
Humidity |
5%~95%, no condensation |
|
|
Drop |
1.8m cement floor, free fall, 6 sides, X 5 times/=30 times |
|
|
ESD Protection |
Contact discharge: 15KV, coupling discharge: 20KV+ |
|
|
Enclosure Protection |
IP54 |
|
|
Environmental Photoimmunity |
100.000Lux |
|
SUPERLEAD is a professional barcode scanner supplier, we provide dpm code reader, dpm barcode reader, superlead barcode scanner, QR code scanner and etc. For more information, please feel free to contact us!
