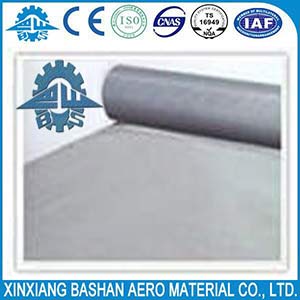

Superior Quality Multilayer Sintered stainless steel woven Mesh
Quantité : 50000 squa Prix : USD3/aquare meter
Product Description
|
Superior Quality Multilayer Sintered Metal Wire Mesh |
|
|
Mesh material |
AISI 304/316/304L/316L, |
|
Thickness |
3mm,4mm,5mm,6mm,etc |
|
Filtration precision |
1-500μm |
|
Standard size |
500X1000X1.7mm |
|
Porosity(%) |
28/29/30/31/32/35/39 |
|
Certifications |
GB/T6003, ISO 3310, BS410, ASTM E11, JIS Z 8801 |
The Multilayer Sintered Metal Wire Mesh is mainly used for gas, liquid filtration and other media separation. Wire mesh weaving filter can be produced following mechanical industry JB / T5979-92, enterprise standard Q / 9D193-1998, which with the use of international standards ISO4783 / 1--1990 "wire mesh - mesh and wire diameter combination Guide - Part I General. Weft Wire of the wire mesh weaving mesh adopts two ways such as plain weave and twill weave. The Filtration accuracy of the Multilayer Sintered Metal Wire Mesh is 500-2μm.
Standard size: 500X1000X1.7mm
All Multilayer Sintered Metal Wire Mesh mainly include 500*1000,1000*1000,1200*1000
Metal Square Wire Mesh
Our premium quality Multilayer Sintered Metal Wire Mesh is produced to the very tight tolerances, providing consistent repeatable analysis.
Wire Mesh Fixed by Soldering
High degree of corrosion resistance and easy cleaning thanks to high-alloy stainless steels.
|
Filtration accuracy(μm) |
The thickness of filter layer(mm) |
Filter layer |
|
1 |
0.068 |
400X2700/0.028X0.02 |
|
2 |
0.09 |
325X2400/0.036X0.025 |
|
5 |
0.151 |
200X1400/0.071X0.04 |
|
10 |
0.151 |
165X1400/0.071X0.04 |
|
15 |
0.135 |
160X1500/0.063X0.036 |
|
20 |
0.161 |
165X800/0.071X0.045 |
|
25 |
0.171 |
165X600/0.071X0.05 |
|
30 |
0.245 |
78X760/0.112X0.071 |
|
40 |
0.320 |
60X300/0.14X0.09 |
|
50 |
0.305 |
50X600/0.125X0.09 |
|
50 |
0.092 |
0.05/0.04 |
|
60 |
0.115 |
0.063/0.05 |
|
70 |
0.129 |
0.071/0.056 |
|
75 |
0.115 |
0.075/0.05 |
|
80 |
0.145 |
0.08/0.063 |
|
90 |
0.163 |
0.09/0.071 |
|
100 |
0.163 |
0.1/0.071 |
|
150 |
0.23 |
0.15/0.1 |
|
200 |
0.258 |
0.2/0.012 |
The application of Superior Quality Multilayer Sintered Metal Wire Mesh
1) It can be used for Scattering and cooling material in the high temperature environment
2) It can be used for gas distribution fluid fluidized bed orifice material
3) It can be used for filter material which has high precision, high reliability and high temperature
4) It can be used for high pressure backwashing oil filter
Contact
Personne à contacter : Jenny Xu, +86 373 3091998
