Steel roll forming machine

Quantité : 1 set   Prix : US $0 - 200,000/ Set

Product Details:

Place of Origin

China

Brand Name

TUT

Model Number

TUTFM18-76-988 forming machine

forming machine

forming machine

Payment & Shipping Terms:

FOB Price:

Get Latest Price

Minimum Order Quantity:

1 set

Delivery Time:

about 75 days

Payment Terms:

T/T (30% deposit, balance before delivery)

Supply Ability:

20 sets/month


Detailed Product Description

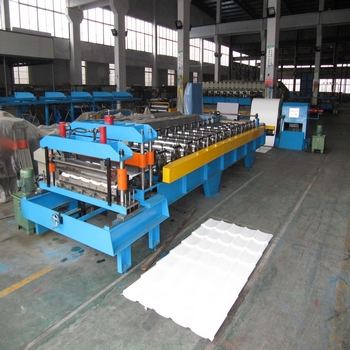

Model TUTFM18-76-988 forming machine consists of uncoiler and its base, coil sheet
guiding equipment, film covered device, roll forming system, post-cutting equipment,
hydraulic station, controlling system, supporter table.

Forming MachineTechnical parameters:

1)Material spec:

colored steel sheet; galvanized steel sheet

2)Thickness of coil sheet:

0.3 - 0.7 mm

3) Main motor power:

7.5kW

4) Forming speed:

10 - 12m/min

5)Hydraulic station power:

3kW

6) Quantity of stands:

about 18 groups

7)Hydraulic pressure:

10 - 12MPa

8) Controlling system:

PLC

9)Index error of length:

10m±2mm

10) Total weight:

about 1,000kg

11) Voltage:

380V 3 phase 60Hz or at buyer's requirement

Forming Machine Material of main equipment:

1)Roller material:

high grade no. 45 forged steel, plated hard chrome the surface of roller with thickness 0.05mm

2)Active shaft material:

high grade No.45 carbon wrought steel at diameter 75mm

3)Cutter blade:

Cr12 mould steel with quenched treatment

4)Electric elements:

control system with PLC model S7-200, Siemens tran s. It can input 10 sets of spec at one time

5) Oil tank

model of hydraulic system: CB-E310
