Steel Formwork

TECON Steel/metal formwork system mainly contains Steel LITE Formwork, HETO Frame Wall Formwork, Steel Deck Slab Formwork, Adjustable Steel Frame Column Formwork, LITE Steel Column Formwork and Single Side Formwork.

Advantages of Steel Formwork

Steel column formwork formwork can save costs and bring environmental benefits to the construction process.

Creating steel formwork requires a minimal production process. There are many ways to make steel, one of which is computer modelling. The digital modelling process ensures that the steel is formed correctly the first time it is created and formed, thereby minimizing rework. If the steel formwork can be manufactured quickly, the speed of fieldwork will also be accelerated.

Due to its strength, steel is suitable for extreme environments and severe weather conditions. Its anti-corrosion performance reduces the possibility of accidents for building builders and residents, thus providing a safe environment for everyone.

Thanks to the reusability and recyclability of steel, metal formwork can be regarded as a sustainable building material. Therefore, more and more companies are making sustainable development choices to reduce environmental damage.

Types of Steel Formwork

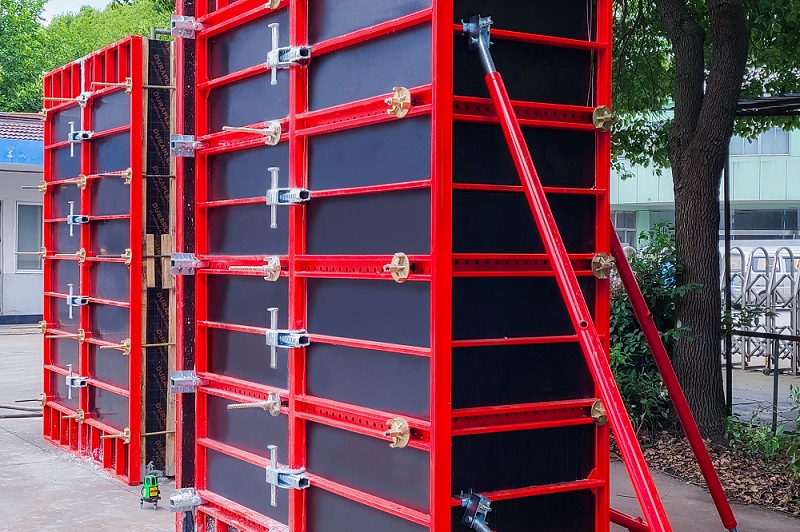

TECON HETO Frame Wall Formwork

TECON HETO formwork is a steel frame panel system lined with 12mm birch film-faced-plywood, universal and high efficient for walls in medium to big scale projects under crane assistance. The alignment coupler for all panel connections ensures high-speed site assembly.

Feature of HETO Frame Wall Formwork

Easy to connect.

Adjustable panel.

Large-area shuttering.

Easy and fast operations.

Adjustable alignment coupler.

Complete piece birch plywood and replaceable.

Specifications of HETO Frame Wall Formwork

"73mm steel frame depth, Powder coated or hot-dip galvanization finishing, lined with 12mm TECON-Form plywood. Panel widths up to 1.0m, and panel heights up to 3m, with main panel sizes as below table (W*H, mm)."

Feature of HETO Frame Wall Formwork

Easy to connect.

Adjustable panel.

Large-area shuttering.

Easy and fast operations.

Adjustable alignment coupler.

Complete piece birch plywood and replaceable.

Specifications of HETO Frame Wall Formwork

"73mm steel frame depth, Powder coated or hot-dip galvanization finishing, lined with 12mm TECON-Form plywood. Panel widths up to 1.0m, and panel heights up to 3m, with main panel sizes as below table (W*H, mm)."

Aligned and tight connections by Alignment Coupler, including filler timber compensations up to 10 cm. Allowable fresh concrete pressure: 60 kN/m².

Application of HETO Frame Formwork

Residential & commercial buildings with big area walls, infrastructure projects, adjustable columns and others.

Related products of HETO Frame Formwork

Aluflex formwork

BASE 20 formwork

Steel Lite formwork

TECON Adjustable HETO Frame Column Formwork

TECON Adjustable HETO Frame Column formwork is a steel frame panel system lined with 12mm film-faced-plywood, universal and high efficient for column in medium to big scale projects under crane assistance. With the alignment coupler for all panel connections, it ensures very fast site assembly.

Feature of TECON Adjustable HETO Frame Column Formwork

Easy and simple connection with user friendly adjustable alignment couplers

Efficient assembly and operation with only a few panel widths and heights, as well as inset tie points

Adjustable column sizes with easy transportation

Long service life and easy for cleaning by its nice finishing

Compatible with normal GI tube for extra reinforcement at lowest cost

Application of Single Side Formwork

Single sidewalls in the metro station, sewage treatment plants, and other excavations projects.

Related products of Single Side Formwork

Dam formwork

BASE 20 formwork

Multi-function climbing formwork

Now the price of steel shutters for concrete for sale is affordable, if you have needs, please contact us.

As one of concrete formwork suppliers, we have types of related products for sale, if you have needs, please leave us a message.
